4.4 Keypad Operation
134 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
The configuration procedure is complete.
â—† Show Custom Monitors
The procedure in this section shows how to show the registered custom monitors.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Custom Monitor], then push .

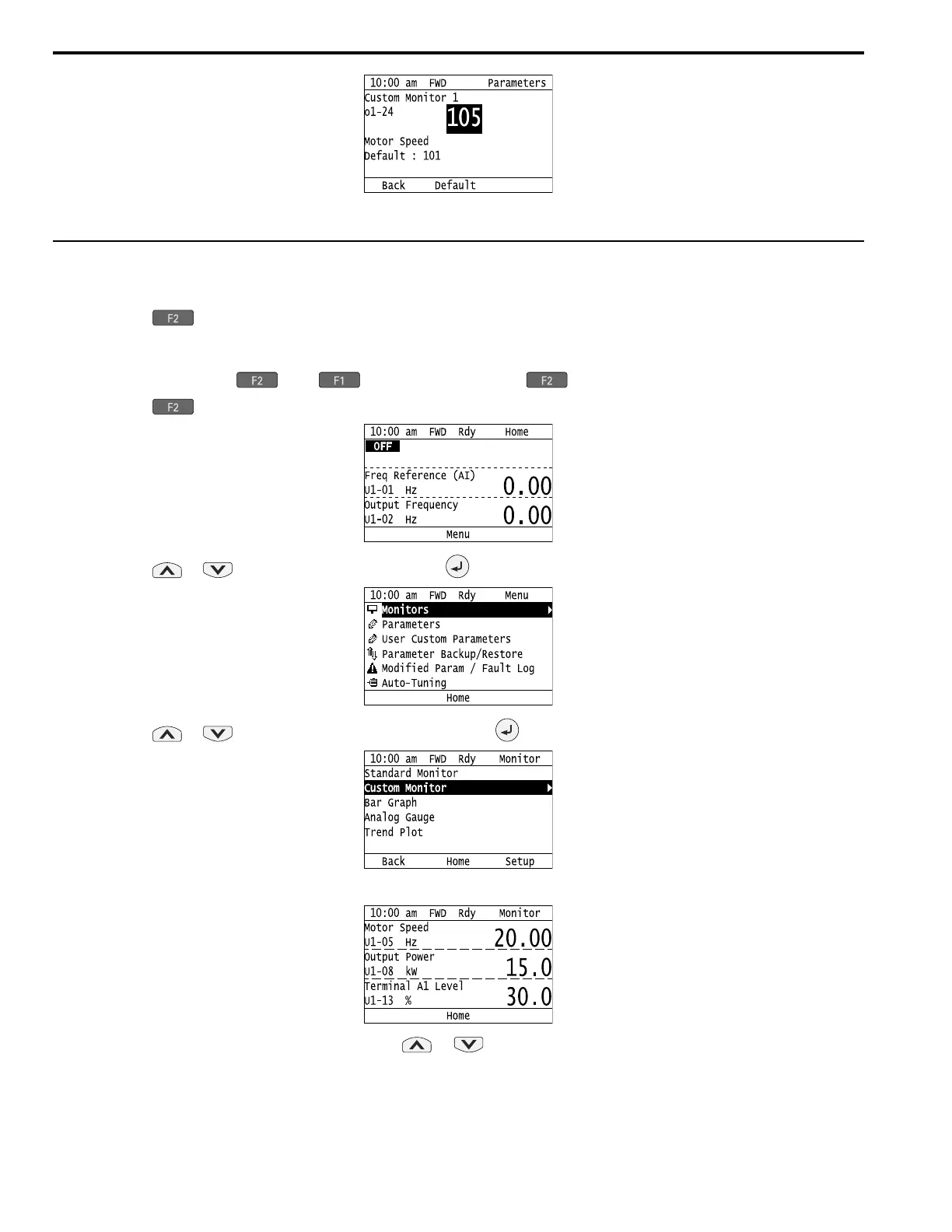

The keypad shows the selected monitor as shown in this figure.
• When there are a minimum of two screens, push or to switch between screens.
• If you registered only one custom monitor to [Custom Monitor 1], the screen will show only one monitor. If you
registered custom monitors only to [Custom Monitor 1] and [Custom Monitor 2], the screen will show only two
monitors.
