Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 135

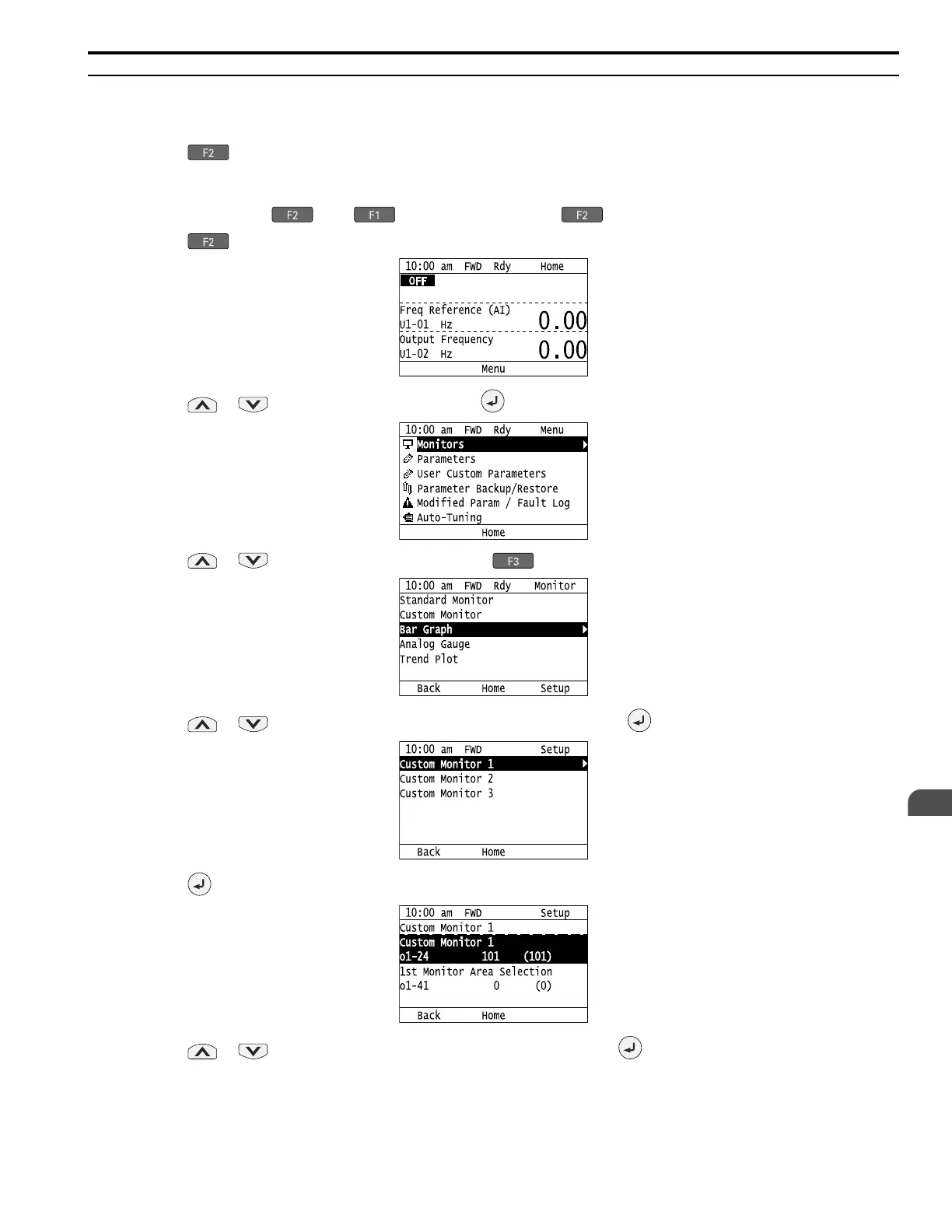

◆ Set the Monitors to Show as a Bar Graph
The procedure in this section shows how to show the frequency reference monitor as a bar graph.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Bar Graph], then push (Setup).
5. Push or to select the location to store the monitor, then push .
6. Push .
7. Push or to select the monitor number to register, then push .
Enter the three digits in “x-xx” part of monitor Ux-xx to identify which monitor to output. For example, to show
monitor U1-01 [Frequency Reference], set it to "101" as shown in this figure.
To Next Page
