4.4 Keypad Operation
136 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
The configuration procedure is complete.

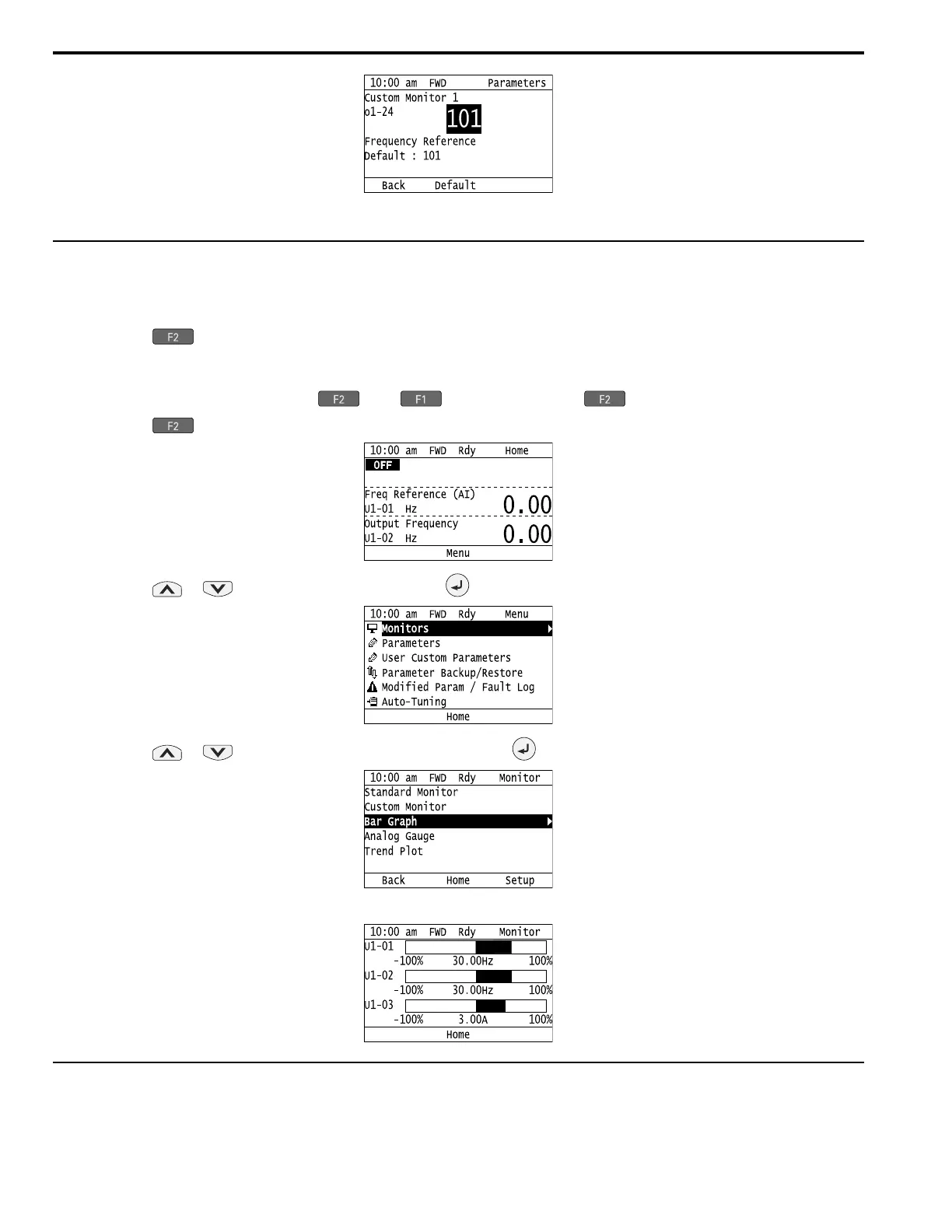

â—† Show Monitors as Bar Graphs
The procedure in this section shows how to show a specific monitor as a bar graph. You can show a maximum of
three.
1. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If the screen does not show [Home] for , push (Back), and then push to show [Home].
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Display Bar Graph], then push .
The screen will show the monitors as shown in this figure.
â—† Set the Monitors to Show as Analog Gauges
The procedure in this section shows how to show the frequency reference monitor as an analog gauge.
