Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 153

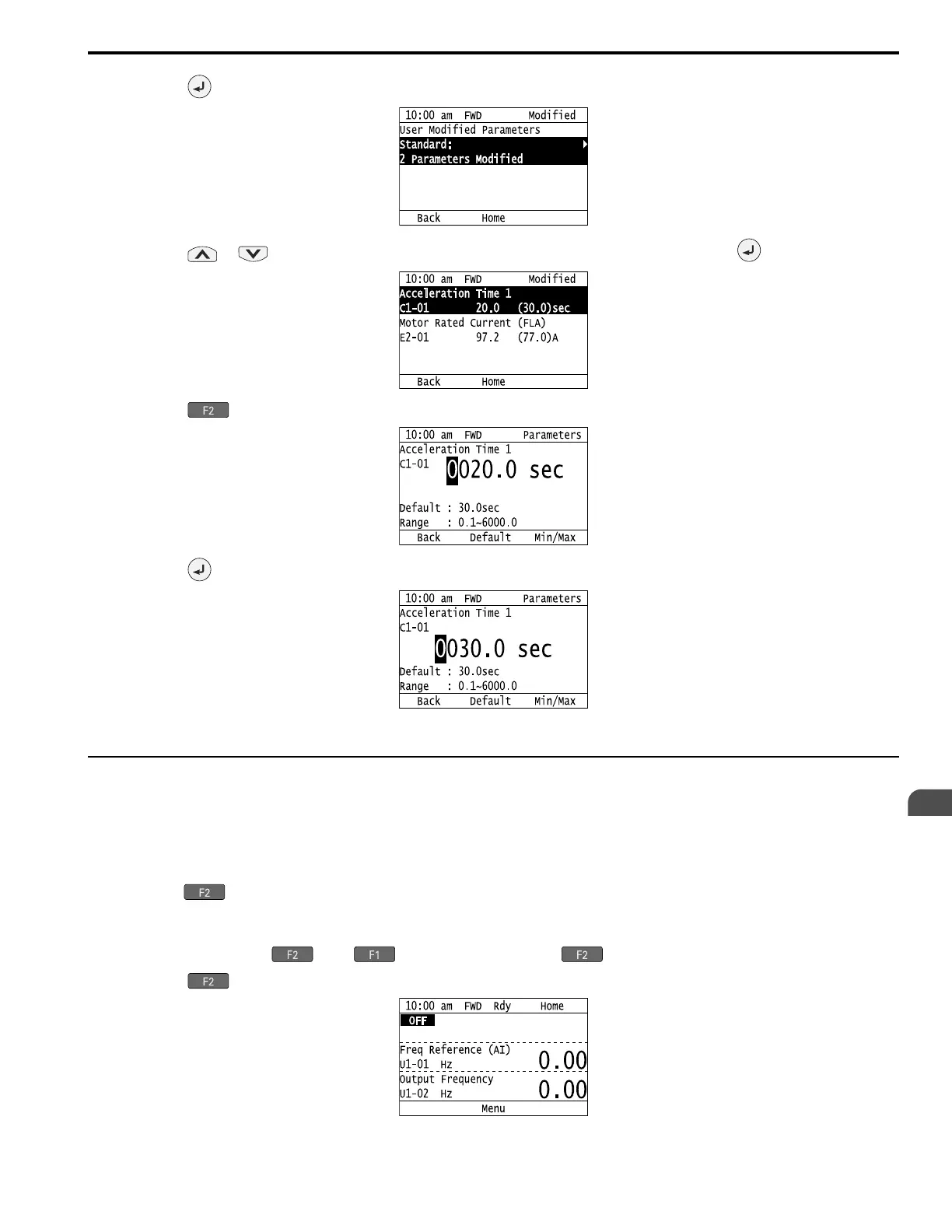

5. Push .
6. Push or to select the parameters to return to their default settings, then push .
7. Push (Default).
8. Push .
The modified parameters are now set to default values.
â—† Show Fault History
You can examine a maximum of 10 fault codes and dates and times that the faults occurred.
Note:
• To monitor the date and time of faults, you must first set the date and time on the keypad.
• If the keypad does not have a clock battery, you must set the date and time each time you energize the drive.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
