YASKAWA HV600 User Manual

5.7 H: Terminal Functions
276 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

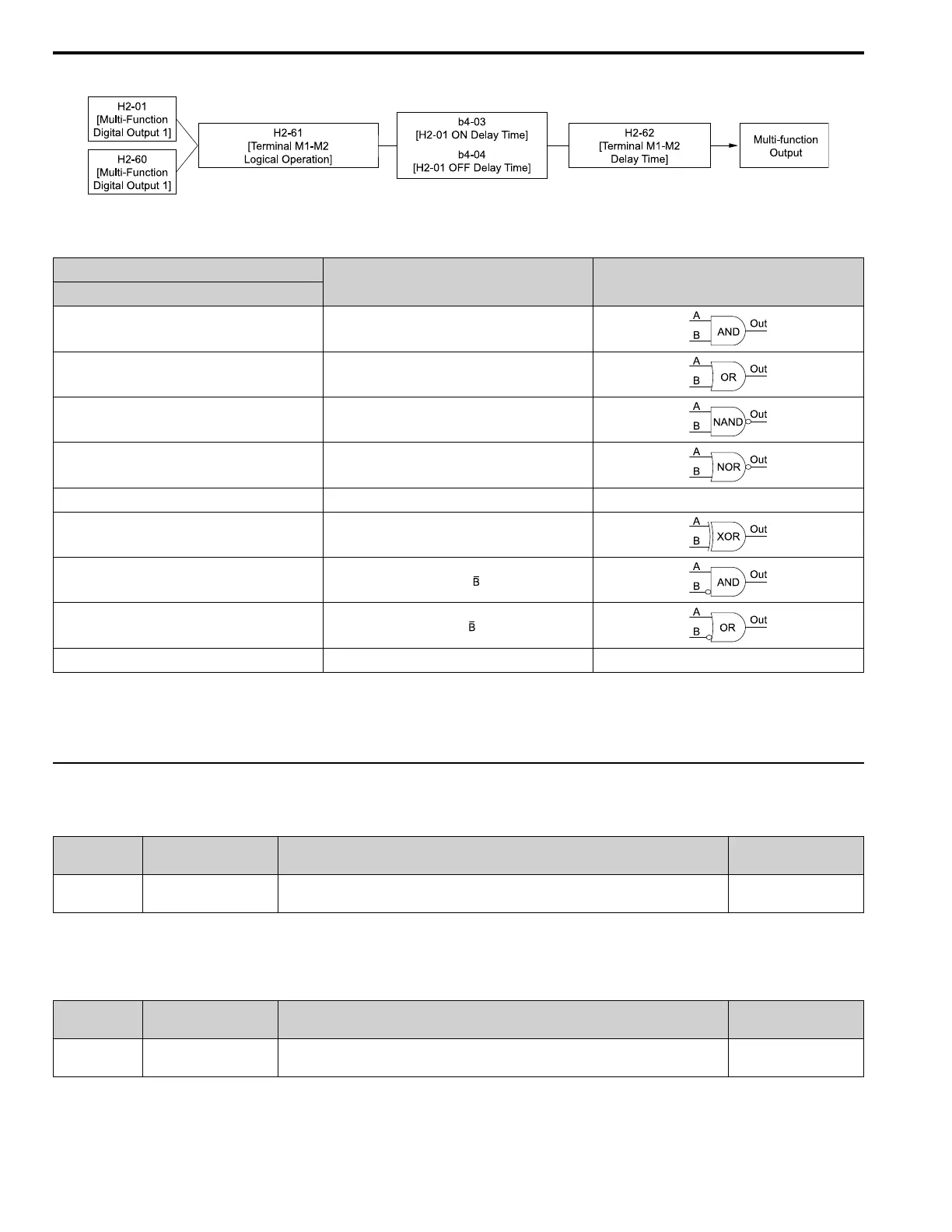

Figure 5.44 Functional Block Diagram of Logical Operation Output for MFDO 1
Table 5.42 MFDO Logical Operation Table
Logical Operation Selection
Logical Operation Expression Logical Operation Notation
H2-61, H2-64, H2-67
0 A=B=1
1 A=1 or B=1
2 A=0 or B=0
3 A=B=0
4 A=B A=B
5 A != B
6
AND(A, )
7
OR(A, )
8 - On
Note:
• When you use the function to output logical calculation results, you cannot set H2-01 to H2-03 = 1xx [Inverse Output of xx]. If you do, the
drive will detect oPE33 [Digital Output Selection Error].
• When you do not use H2-60, H2-63, and H2-66, set them to F. The through mode function is not supported.
◆ H2 MFDO Parameters
■ H2-01: Term M1-M2 Function Selection
No.
(Hex.)
Name Description
Default
(Range)
H2-01
(040B)
Term M1-M2 Function
Selection
Sets the function for MFDO terminal M1-M2. 0
(0 - 1FF)
Note:
When you do not use the terminal or when you use the terminal in through mode, set this parameter to F.
■ H2-02: Term M3-M4 Function Selection
No.
(Hex.)
Name Description
Default
(Range)
H2-02
(040C)
Term M3-M4 Function
Selection
Sets the function for MFDO terminal M3-M4. 1
(0 - 1FF)
Note:
When you do not use the terminal or when you use the terminal in through mode, set this parameter to F.
