4.2 Keypad: Names and Functions
120 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
No. Name Function
H
Left Arrow Key Moves the cursor to the left.
Up Arrow Key/Down Arrow Key
/
• Scrolls up or down to display the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET)
• Moves the cursor to the right.
• Continues to the next screen.
• Clears drive faults.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move the user between keypad displays.
• Selects each mode, parameter, and set value.
I
AUTO Key
Sets drive operation to AUTO Mode.
The drive uses the b1-01 [Frequency Reference Selection 1] and b1-02 [Run Command Selection 1] settings.
Note:
Push on the keypad to set the drive to HAND Mode before you use the keypad to operate the motor.
J
USB Terminal
Insertion point for a mini USB cable. Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the keypad to a PC.
K RJ-45 Connector
Uses an RJ-45 8-pin straight through UTP CAT5e extension cable or keypad connector to connect to the drive.
L Clock Battery Cover
Cover for the clock battery.
Note:
• The battery included with the keypad is for operation check. It may be exhausted earlier than the expected battery life
described in the manual.
• Refer to “Maintenance & Troubleshooting Manual (TOEPYAIHV6001)” for more information about replacement
procedure.
To replace the battery, use a Hitachi Maxell “CR2016 Lithium Manganese Dioxide Lithium Battery” or an equivalent battery
with these properties:
• Nominal voltage: 3 V
• Operating temperature range: -20 °C to +85 °C (-4 °F to +185 °F)
M Insulation Sheet
An insulating sheet is attached to the keypad battery to prevent battery drain. Remove the insulation sheet before you use the
keypad for the first time.
*1 Refer to AUTO LED and HAND LED Indications on page 121 for more information about AUTO LED and HAND LED indications.
◆ LCD Display

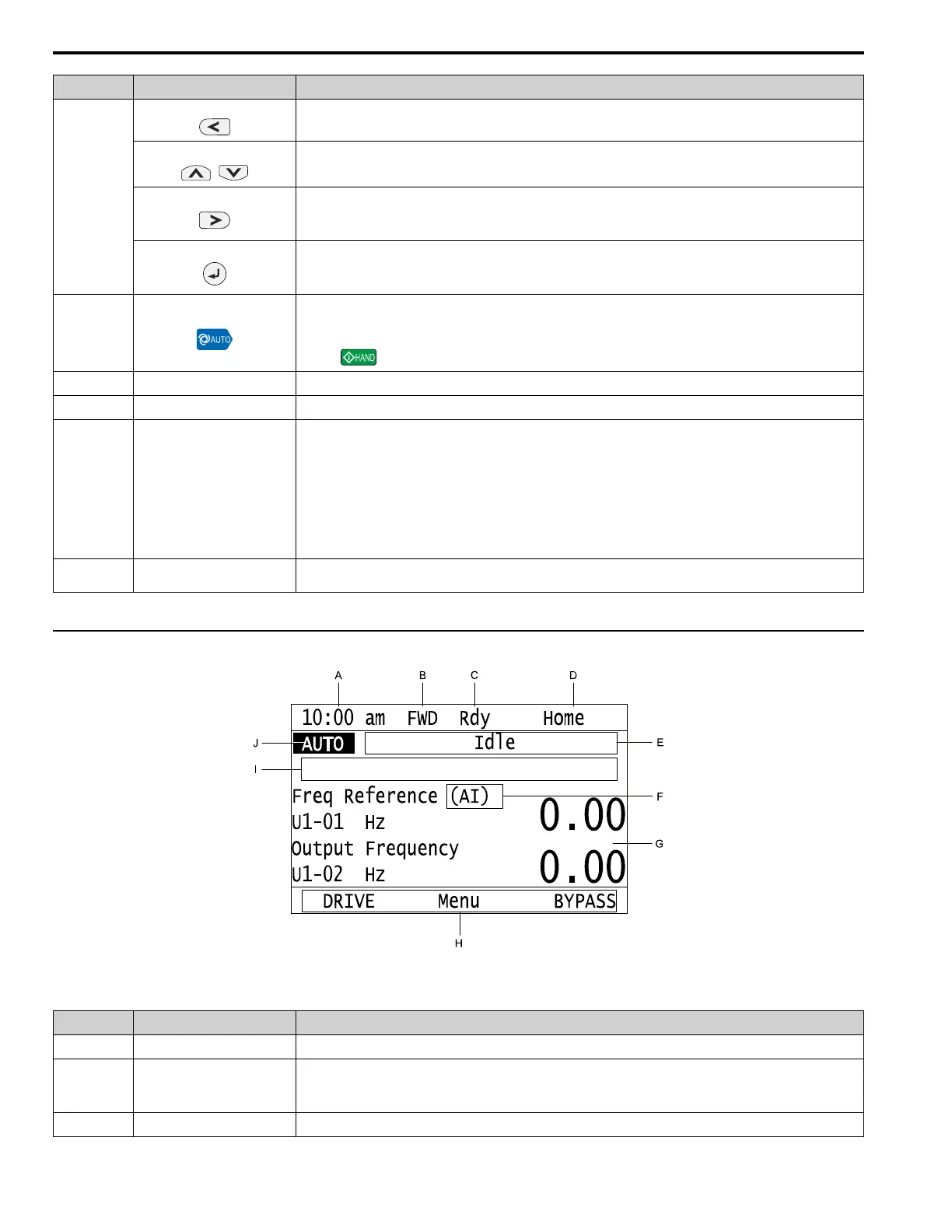

Figure 4.2 LCD Display Indications
Table 4.2 LCD Display Indications and Meanings
Symbol Name Description
A Time display area
Shows the current time. Set the time on the default settings screen.
B Forward/Reverse run indication
Shows direction of motor rotation.
• FWD: Shown when set to Forward run.
• REV: Shown when set to Reverse run.
C Ready
The screen will show Rdy when the drive is ready for operation or when the drive is running.
