5.10 o: Keypad-Related Settings
354 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
The keypad will also show Information Text on the second and third lines. Information Texts are display indications
of the current drive status. Information Texts are similar to Messages, but they cannot display as full-screen.

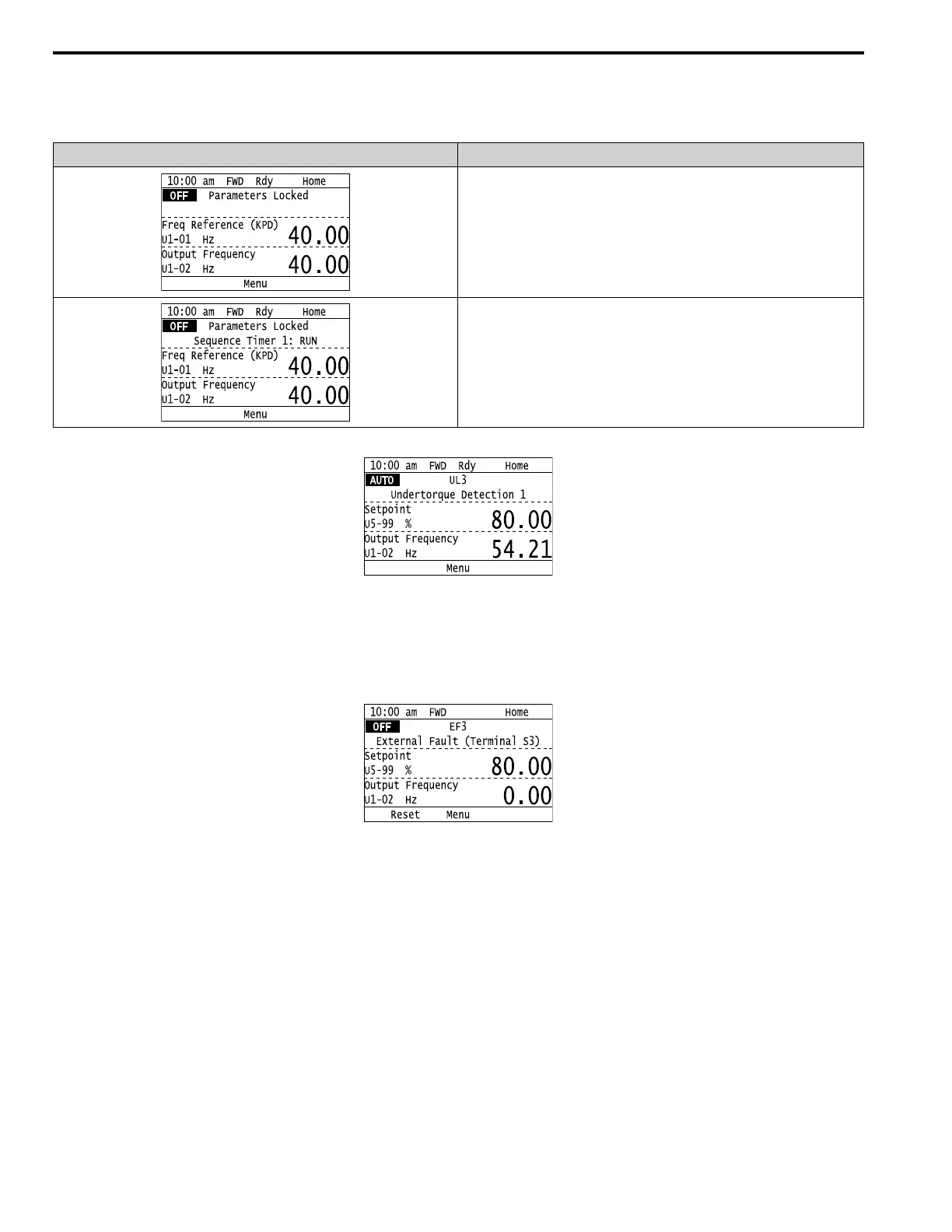

Table 5.50 Displays for Information Text
Keypad Display Description
The keypad shows Information Text only on the second line.
The keypad shows Information Texts on the second and third lines.
When an alarm occurs, the keypad will show the alarm code and alarm name on the second and third lines.
Figure 5.90 Display for Alarm
When a fault occurs, the drive will reset the scroll position of the HOME screen display and show the related message
on the second and third line.
Note:
The drive will not reset the HOME screen display if an alarm or message occurs.
Figure 5.91 Display for Fault
When the keypad must show more than one status (Alarms/Faults, Information Text, Messages) on the Status
Monitor, the keypad will cycle a different display each 2 s.
If there is a new alarm or fault, it will stop the display cycle and the keypad will show the alarm or fault screen for 1 s.
The keypad will then start the 2-second display cycles again from the Information Text display screen.
If the Information Text only has an effect on the second line, the keypad will show a Message or an Alarm on the
third line. The Message display has priority because it is possible to have more than one active Message at the same
time.
