YASKAWA HV600 User Manual

2.5 Bypass Component Names
38 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
2.5 Bypass Component Names
◆ Narrow Bypass Component Names
This section gives an overview of the Narrow Bypass components described in this manual.
■ 208 V Narrow Models: H6BPD002 to D074
480 V Narrow Models: H6BPB001 to B077
A - Bypass bracket mounting hole
B - Disconnect shaft
C - Bypass front cover captive screws
D - Disconnect handle
E - Bypass front cover
F - Bypass enclosure
G - Keypad mounting screw
H - Keypad
I - Keypad mounting bracket screw
J - Keypad mounting bracket
K - Drive
L - Blank keypad
M - Drive mounting screw

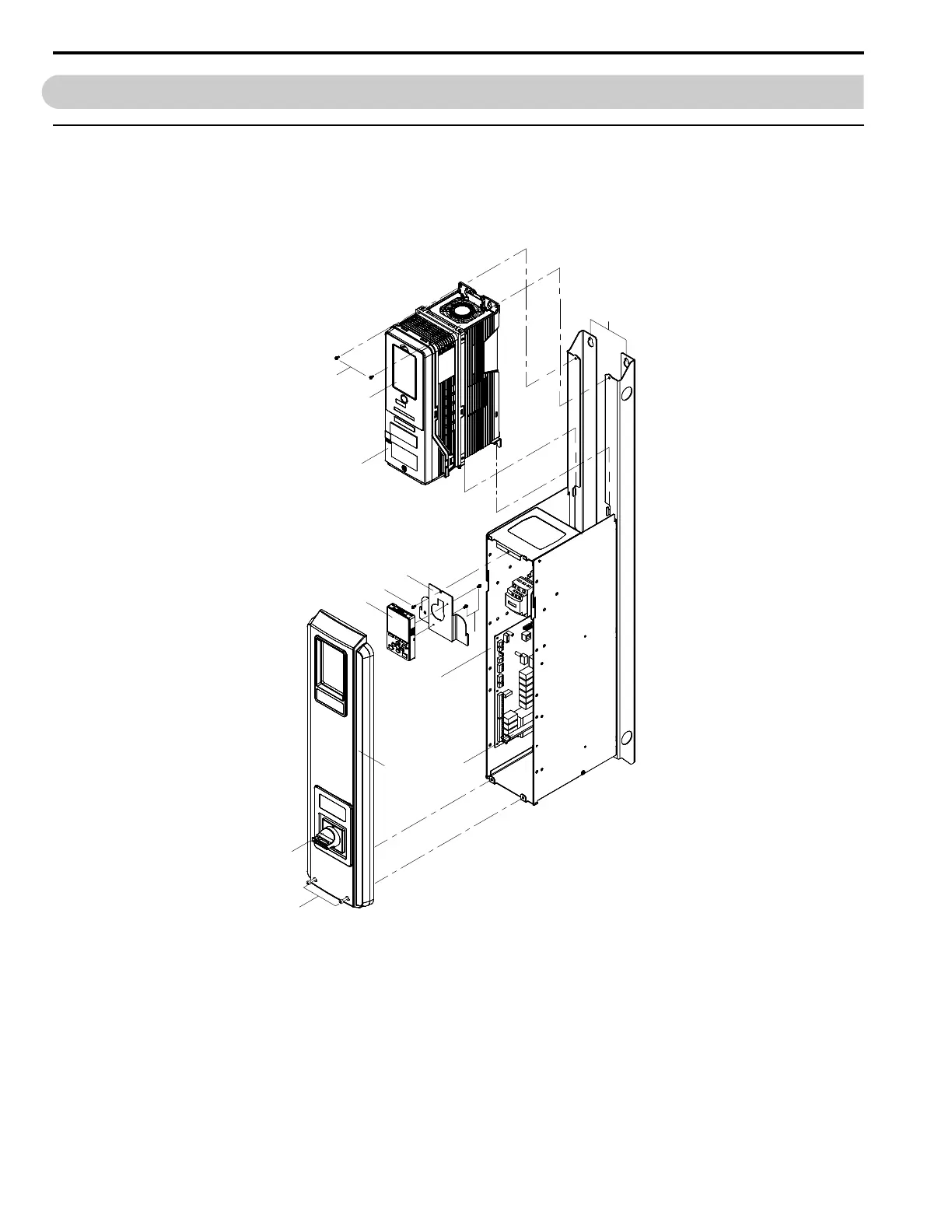

Figure 2.5 Exploded View of Components (Example Narrow Model D024)
A
B
C
E
F
H
I
J
G
K
M
D
L
