4.4 Keypad Operation
138 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

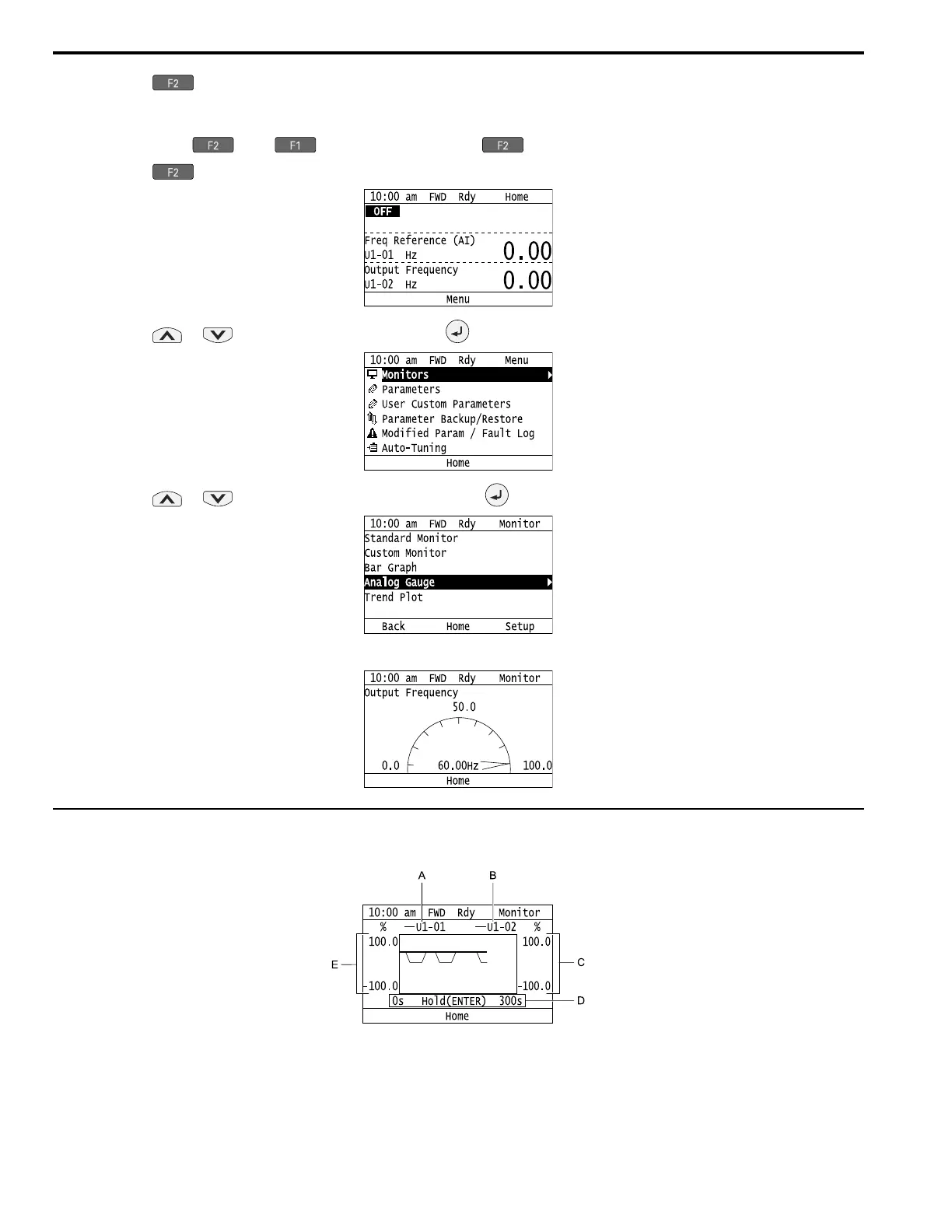

1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Analog Gauge], then push .
It will be displayed as follows.
â—† Set Monitor Items to Show as a Trend Plot
You must set the items in this figure to display as a trend plot.
A - Monitor Parameter 1 (set with [Custom Monitor 1])
B - Monitor Parameter 2 (set with [Custom Monitor 2])
C - Trend Plot 2 Scale Maximum/Minimum Value
D - Trend Plot Time Scale
E - Trend Plot 1 Scale Maximum/Minimum Value
To Next Page
