4.4 Keypad Operation
156 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
When doing Rotational Auto-Tuning, the motor will stay stopped for approximately one minute with power
energized and then the motor will start to rotate.

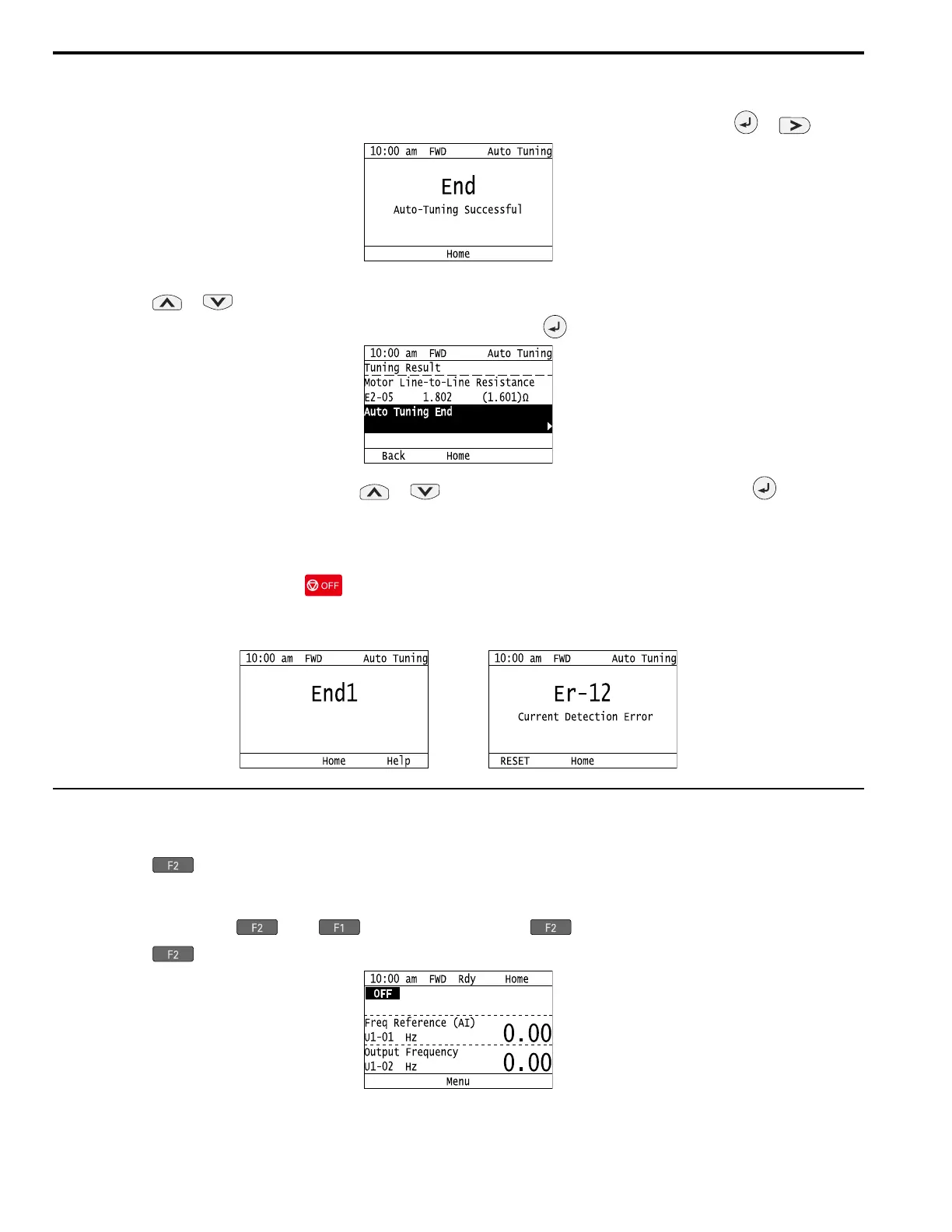

9. When the keypad shows this screen after Auto-Tuning is complete for 1 or 2 minutes, push or .
The keypad will show a list of the changed parameters as the result of Auto-Tuning.
10. Push or in the parameter change confirmation screen to check the changed parameters, then select
[Auto-Tuning Successful] at the bottom of the screen and push .
To change a parameter again, push or to select the parameter to change, then push to show the
parameter setting screen.
Auto-Tuning is complete.
Note:
If the bypass detects an error or you push before Auto-Tuning is complete, Auto-Tuning will stop and the keypad will show an error
code. Endx identifies that Auto-Tuning was successful with calculation errors. Find and repair the cause of the error and do Auto-Tuning
again, or set the motor parameters manually. You can use the bypass in the application if you cannot find the cause of the Endx error. Er-xx
identifies that Auto-Tuning was not successful. Find and repair the cause of the error and do Auto-Tuning again.
â—† Set the Keypad Language Display
The procedure in this section shows how to set the language shown on the keypad.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back), to show [Home] on .
2. Push (Menu).
