4.4 Keypad Operation
142 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
6. Push or to select the specified digit, then push or to select the correct number.
• Push (Default) to set the parameters to the factory default.
• Push (Min/Max) to move between the minimum value and maximum value.
7. Push to keep the changes.
The configuration procedure is complete.
â—† Show Monitor Items as a Trend Plot

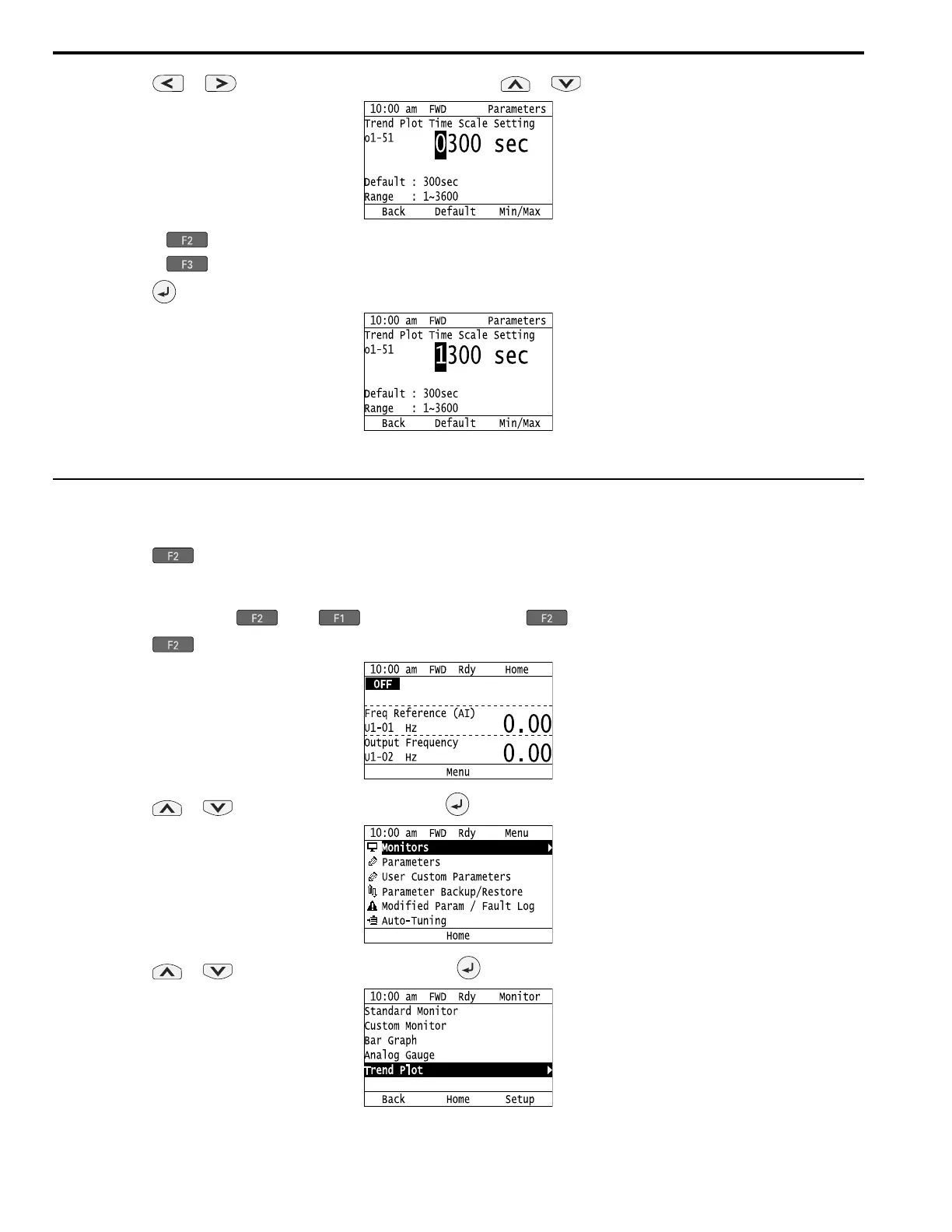

The procedure in this section shows how to show the selected monitor data as a trend plot.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Trend Plot], then push .
The screen will show the monitors as shown in this figure.
To Next Page
