Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 131
4.4 Keypad Operation
Note:
Make sure that you use a keypad with FLASH number 1004 or later. Keypads with FLASH numbers 1003 and earlier will not show
characters correctly.
◆ Home Screen Display Selection
This section gives information about the functions that you can control from the HOME screen and the content shown
on the HOME screen.
■ View Monitors Shown in Home Screen

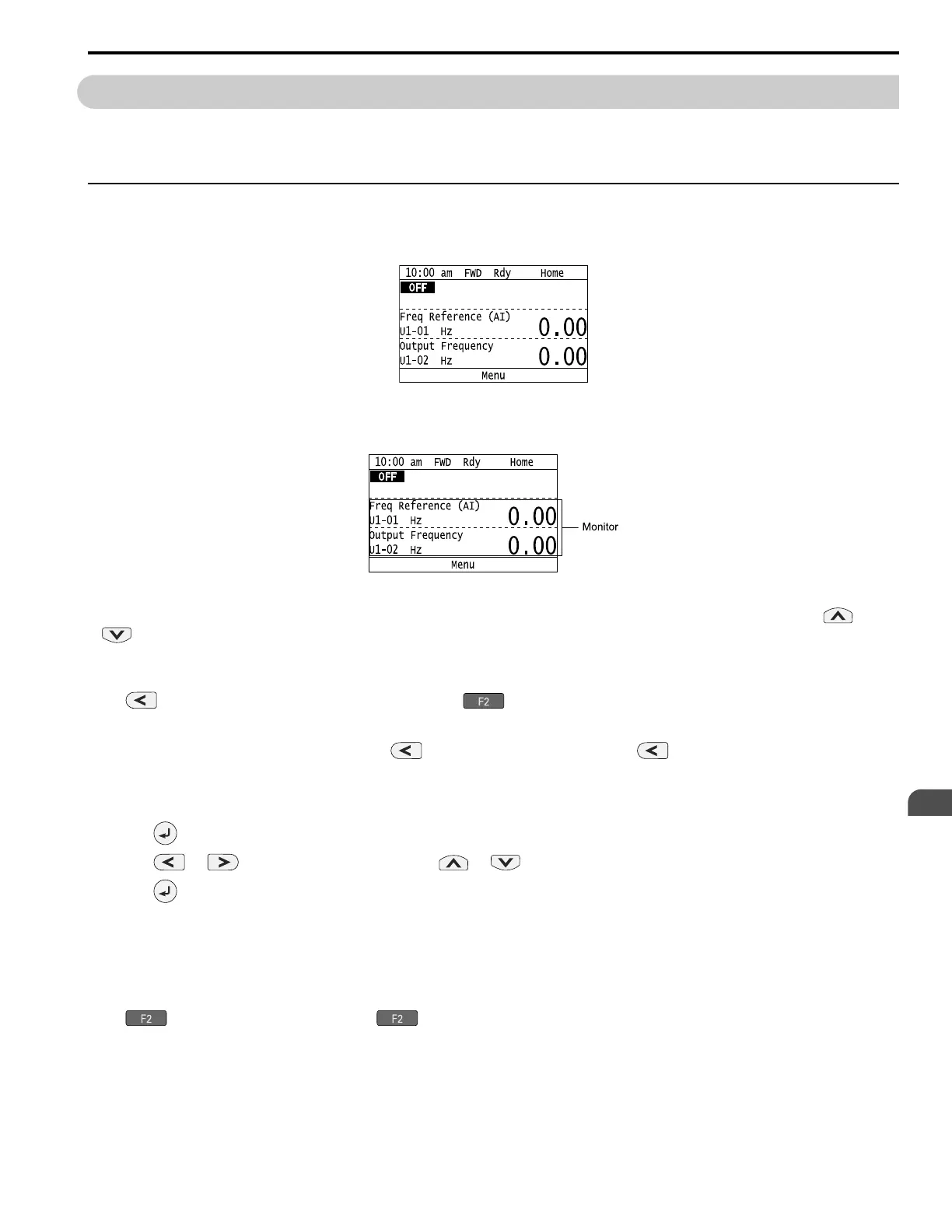

This figure shows monitor data in the data display area of the HOME screen.
• To change what the screen shows, change the setting for o1-40 [Home display selection].
• When o1-40 [Home display selection] is set to “Custom Monitor”, and there is more than one screen, use or
to switch between screens.
■ Show the Standard Monitor
Push to show the standard monitor (Ux-xx). Push (HOME) to go back to the HOME screen.
Note:
When a fault, minor fault, or an error occurs, push to show the content of the fault. Push again to show the standard monitor (Ux-
xx).
■ Change the Frequency Reference Value
1. Push to access the screen to change the frequency.
2. Push or to select the digit, then push or to change the value.
3. Push to keep the changes.
Note:
The HOME screen must show U1-01 [Frequency Reference] or you must set b1-01 = 0 [Frequency Reference Selection 1 = Keypad] to use
this function.
■ Show the Main Menu
Push to show the main menu. Push (HOME) to go back to the HOME screen.
To Next Page
