8.4 Replace Drive Cooling Fans and Circulation Fans
566 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

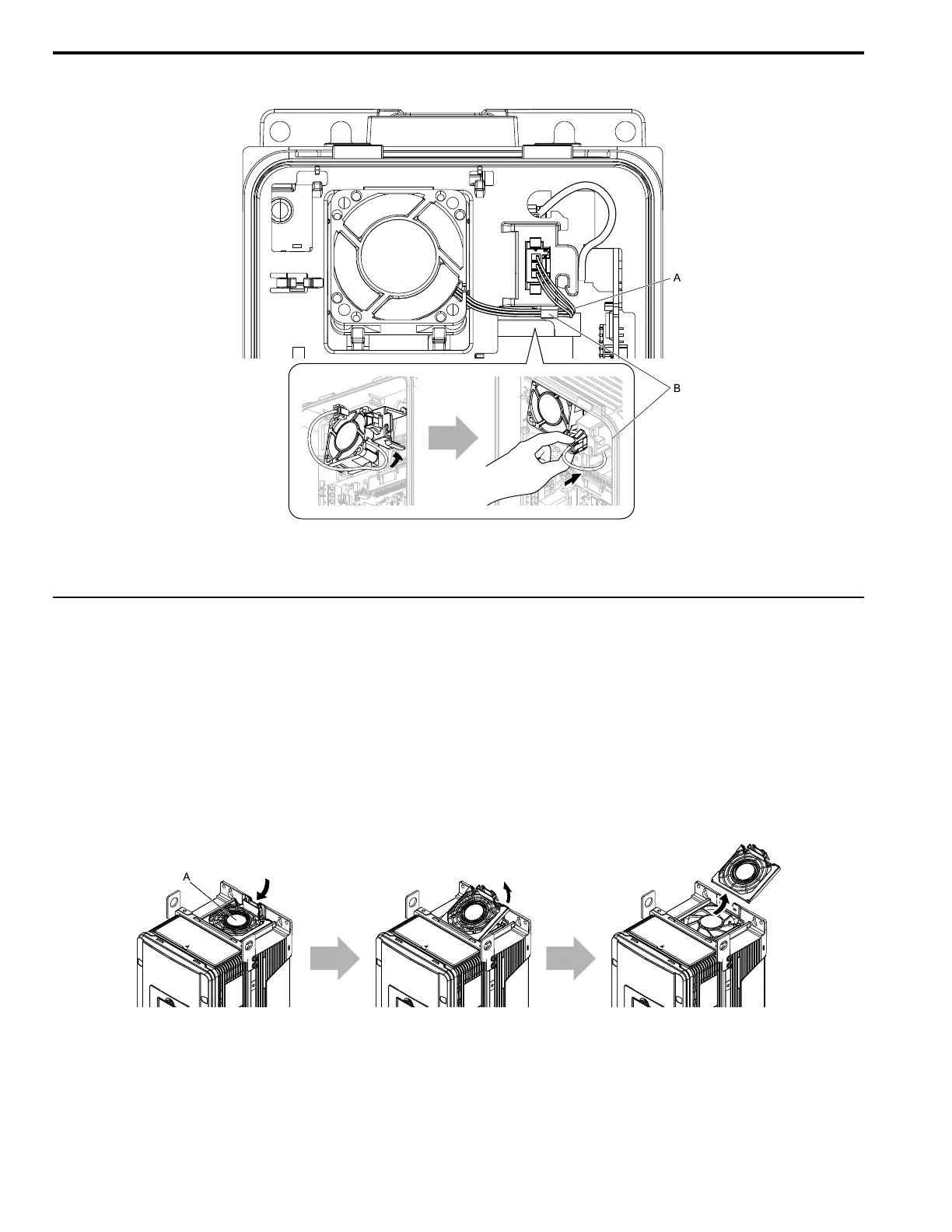

2. Put the cable back into its initial position and connect the power supply connector.
A - Fan cable B - Hook
Figure 8.12 Put the Cable Back into the Drive and Connect the Power Supply Connector
â—† Replace a Fan (Procedure B)
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized bypass. Before servicing,
disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The internal capacitor
stays charged after the bypass is de-energized. The charge indicator LED extinguishes when the DC bus voltage decreases below
50 Vdc. When all indicators are OFF, remove the covers before measuring for dangerous voltages to make sure that the bypass is
safe. If you do work on the bypass when it is energized, it will cause serious injury or death from electrical shock.
CAUTION! Burn Hazard. Do not touch a hot drive heatsink. De-energize the drive, wait for a minimum of 15 minutes, then make
sure that the heatsink is cool before you replace the cooling fans. If you touch a hot drive heatsink, it can burn you.
NOTICE: Use the instructions in this manual to replace the cooling fans. When you do maintenance on the fans, replace all the fans
to increase product life. If you install the fans incorrectly, it can cause damage to the drive and bypass.
â– Remove a Cooling Fan
1. Push the tab on the back side of the fan finger guard and pull up to remove the fan finger guard from the drive.
A - Fan finger guard
Figure 8.13 Remove the Fan Finger Guard
To Next Page
