&KDSWHU ,QWURGXFWLRQ
1-96 3BSE 002 415R701 Rev A
3&(OHPHQWVDQG)XQFWLRQDO8QLWV
Besides the PC elements, the function library consists of functional units. Functional units are
available to supplement the library for more complex functions. A functional unit is a package
of different program functions such as PC element, data base element and operator’s functions.
This simplifies the realization of combined functions with both the control function and
associated operator’s handling via a display screen and keyboard.
The application can be a closed loop control function or a motor or valve control function
requiring an advanced “face-plate” for the operator.
You can use several functional units in combination.
The functional units are also used individually. Examples of this can include a measuring circuit
with alarm activation/deactivation and display screen presentation or a simple command
function from the operator to the process.
You can freely combine the functional units with other PC elements.
Figure 1-43 illustrates the application of functional units in a complex burner control.

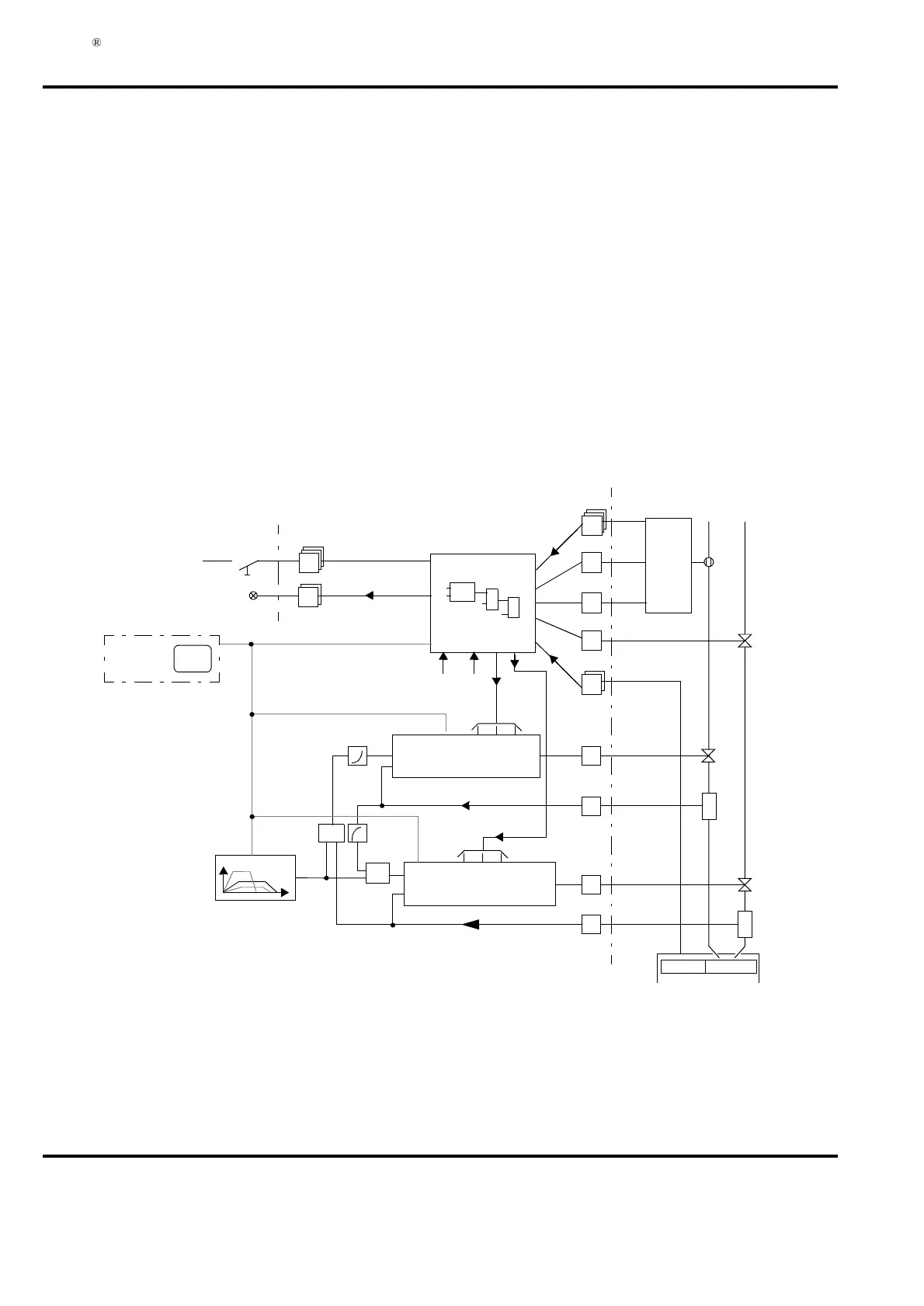

)LJXUH 3ULQFLSOHRID)XQFWLRQDO8QLW$SSOLFDWLRQ
Time contr. SP
PIDCON SEQE1 CLAMP REF
EXTREF
MV
OUT
PIDCON SEQE1 CLAMP REF
EXTREF
MV
OUT
AI
AO
AI
AO
DI
DO
DO
DO
DI
MAX
DI
DO
MIN
F
F
Supervi.
Burner
Furnace
Alarm: Flow Temp
Burner Control
SEQ
&
IV
Local
control, ind.
Air
Fuel
SOV
CV
CV
Process
Protection
Start
Stopp
Switch
gear
Advant OCS
Operator
Station
