ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
$SSHQGL[$ +DUGZDUH0RGXOHV
A-10 3BSE 002 415R701 Rev A
$ 0%3URJUDP&DUG,QWHUIDFH
• Holds flash PROM of the type PCMCIA
• Submodule which fits into Submodule Carrier SC5xx or Processor Module PM150.
'HVFULSWLRQ
Utilizing an MB510 is one method of program card installation in an
Advant Controller 400 Series.
A program card is equipped with flash PROM for different use. For example
to store and backup the system program of the controller.
An optional use is to store and backup the application program (separate program card).
The flash PROM content is loaded into the processor module RAM
during the primary initialization of the controller.
The diagnostics are mainly based on cyclic check sum calculation.
A red LED on the module front indicates hardware error, check sum error or
missing program card.
F

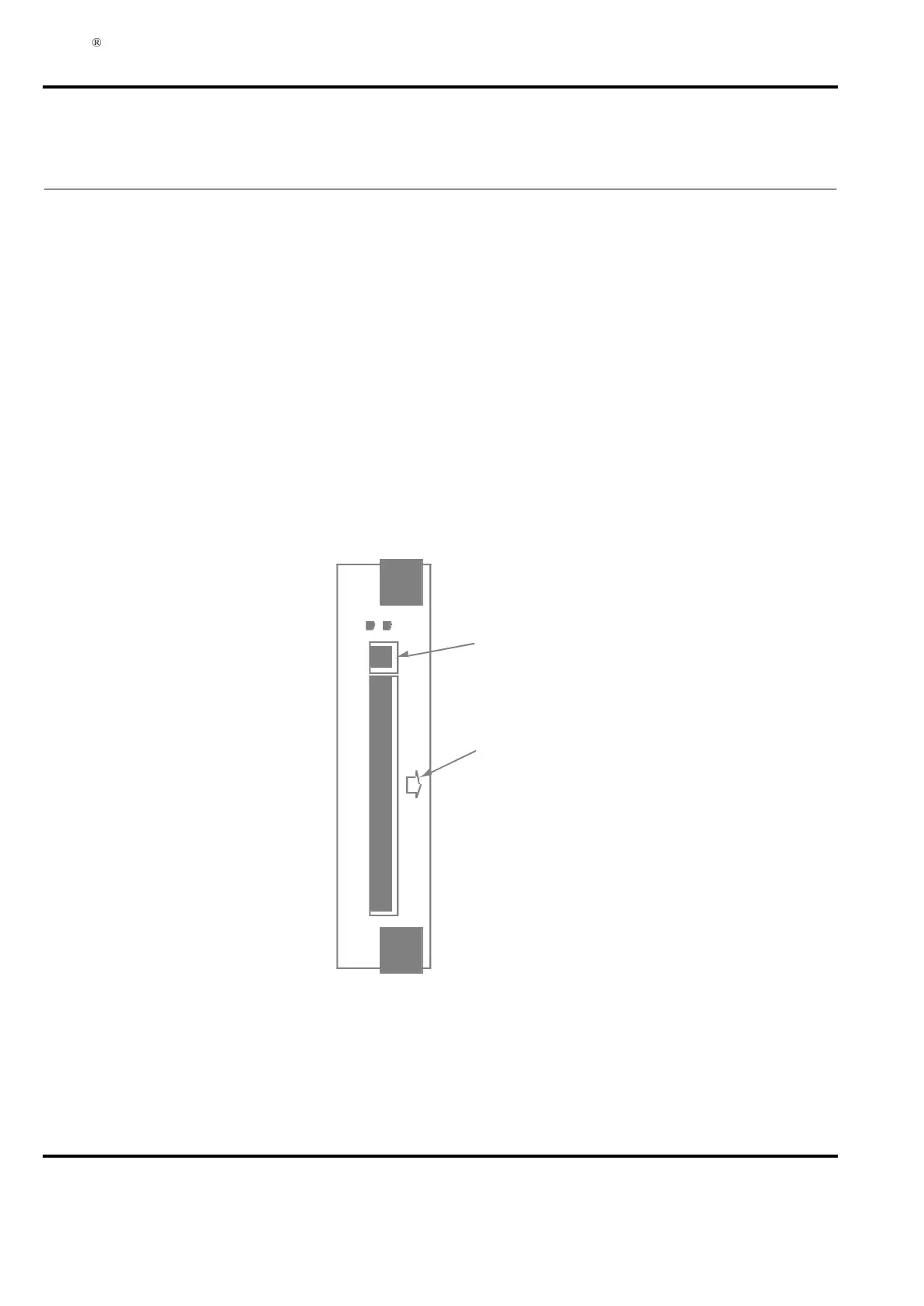

)URQWYL HZ
ABB
MB
510
RUN
Eject button
Arrow to indicate
top of program card
