ABB Advant Controller 450 User Manual

Advant
®
Controller 450 User’s Guide
Section B.1 RM500 Cabinets - General
3BSE 002 415R701 Rev A B-1
Appendix B RM500 Cabinet - Data Sheet
B.1 RM500 Cabinets - General
The RM500 cabinet (available in three protection classes) is used for installation of Advant
Controller 400 Series in control rooms. Two protection classes are ventilated, and complies with
IEC 529 protection class IP 21, and IP41. The third protection class has no ventilation and
complies with IEC 529 IP54. See Table B-3 and Table B-4.

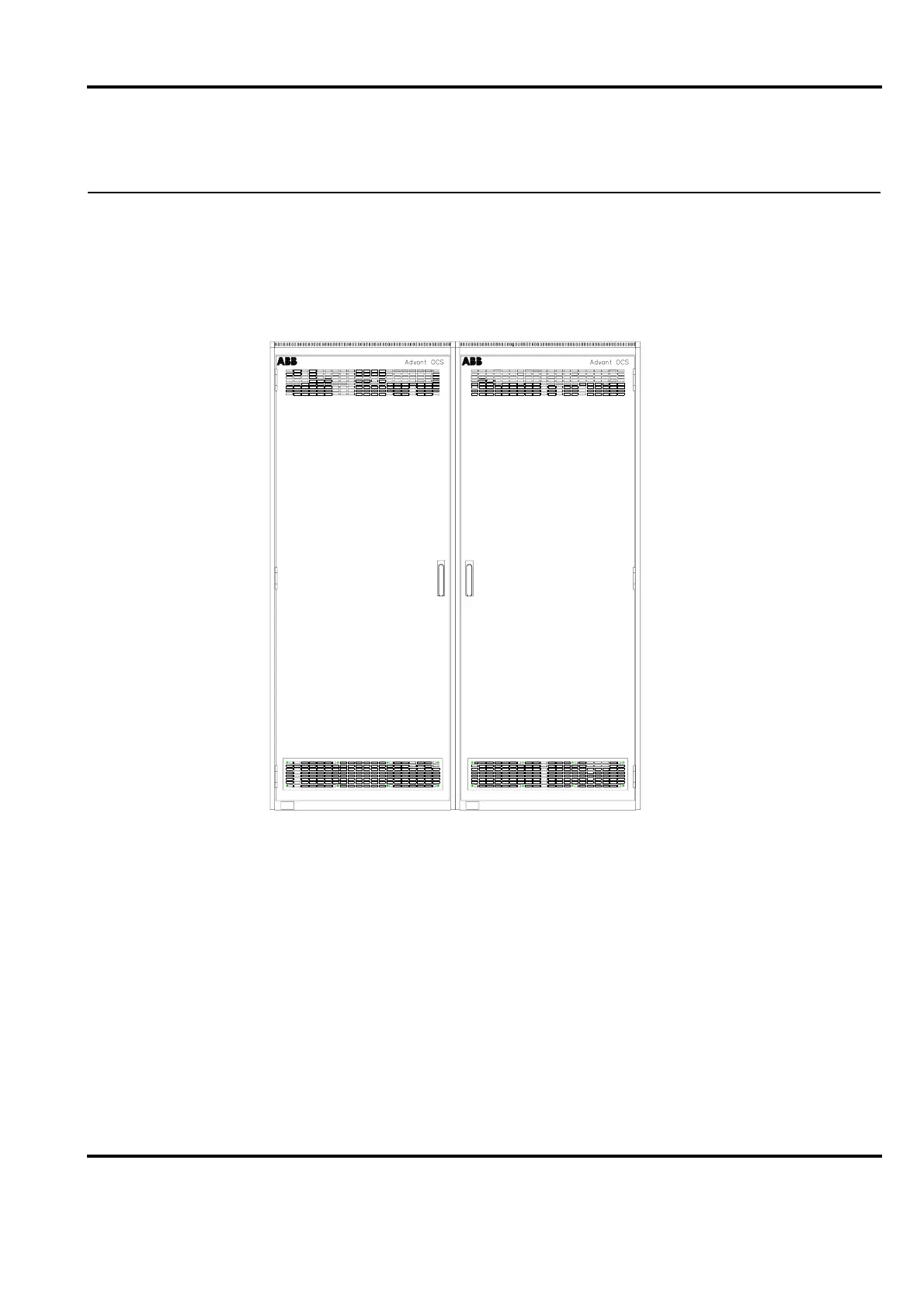

Figure B-1. RM500 Cabinet - Front View
The cabinets are delivered in a light grey RAL 7035 Structure color.
Two versions - RM500V1 and RM500V2 - with different dimensions are available (see
Table B-1).
RM500V1 cabinets are provided with a single or a double door (two doors, each half the size of
a single door). See Figure B-3.
All frame components are made of alu-zinc-coated steel and the welded parts are electro-
galvanized.
A grounding point (an M10 screw) is located towards the front of the cabinet in the bottom left
hand corner.
