ABB Advant Controller 450 User Manual

$GYDQW

&RQWUROOHU8VHU¶V*XLGH
6HFWLRQ 3URGXFW6WUXFWXUH
3BSE 002 415R701 Rev A 1-23
,QWHUIDFH
Besides the more “internal” I/O communication, a controller also communicates with a wide
range of peripherals. Figure 1-9 is scheduling the main functional interfaces.
)XQFWLRQDO0RGXODUL]DWLRQ
The concepts of basic function and optional function are sometimes used in the documentation
of the Advant Controller 450 system. A system can be provided with a number of optional
functions which enable you to adapt each system for specific control tasks. Certain functions
require extra software while others require both extra software and extra hardware.
The memory system containing the Advant Controller 450 functionality is modular. The fixed
VWDQGDUG system software is stored in one single flash PROM module, a program card.
Additional program cards containing specific function libraries can be developed and used.

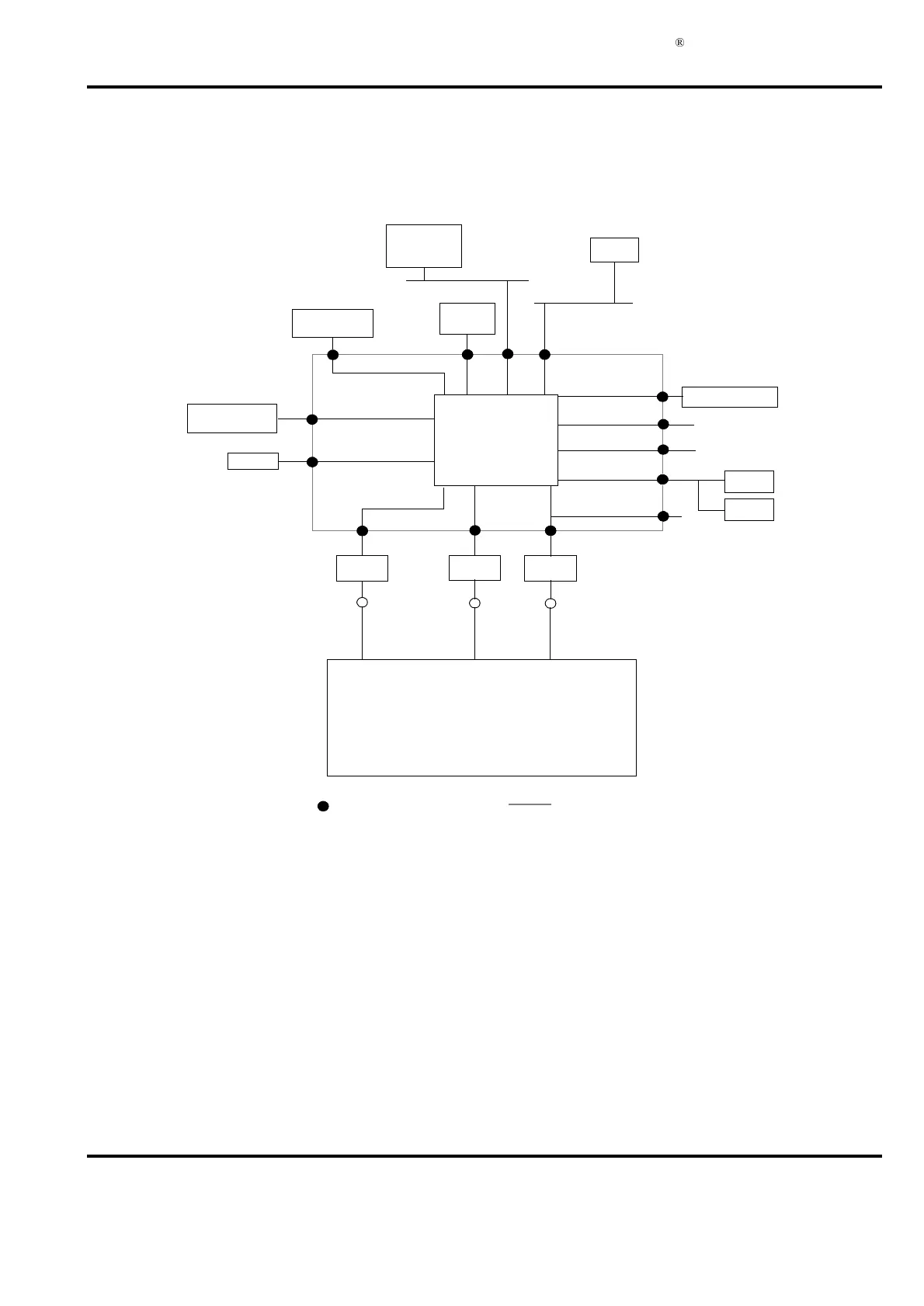

)LJXUH $GYDQW&RQWUROOHU)XQFWLRQDO,QWHUIDFHV
Printer
AC 110
AS 100 Series ES
Terminal for
MasterView 320
Other
control system
External
computer
Operator
Station
Information
Management
Station
CPU
S100 I/O
Process
LAN X
LAN Y
MVI
MasterBus 300EXCOM GCOM
Advant Fieldbus 100
Bus extension to S100 I/O
S400 I/O
MasterFieldbus
Fieldbus
I/O signals I/O signals
Interface
= Interface = Boundary of Controller
S800 I/O
I/O signals
AC 70
Advant
Fieldbus 100
PROFIBUS-DP
PROFIBUS
LONWORKS
LONWORKS
Network Interface
Interface
