Advant
®
Controller 450 User’s Guide
Appendix B RM500 Cabinet - Data Sheet
B-4 3BSE 002 415R701 Rev A
B.3 Mounting Cabinets together
If cabinets are to be mounted to each other use the included screw/bolt kit. The four M8 screws,
with washers and nuts, in the angle hinges and six M6 screws at about Z1=500, Z2=1.000,
Z3=1.500 mm height from the floor, see Figure B-2. Tighten the M8 screws to 20 Nm
maximum and the M6 screws to 10 Nm maximum.
B.4 Mounting Cabinets to the Floor
When fixing the cabinet to the floor use four or six M12 screws where Figure B-4 indicates, one
at each corner in the first left hand cabinet in a row of cabinets and screw the following cabinets
with two screws each at the right hand side. The bottom angle hinges features holes, 14 mm
(0.6”) in diameter. These holes permit you to adjust the cabinet location after holes are drilled in
the floor. If drilling is necessary, make sure that no dust or other foreign matter enters the
equipment in the cabinet. Please notice the minimum distances from cabinet to walls and ceiling
(see Section 2.1.12, Weight and Mounting Dimensions and Figure 2-6). Use washers between
the floor and the cabinet bottom to level the cabinet floor into a horizontal position.

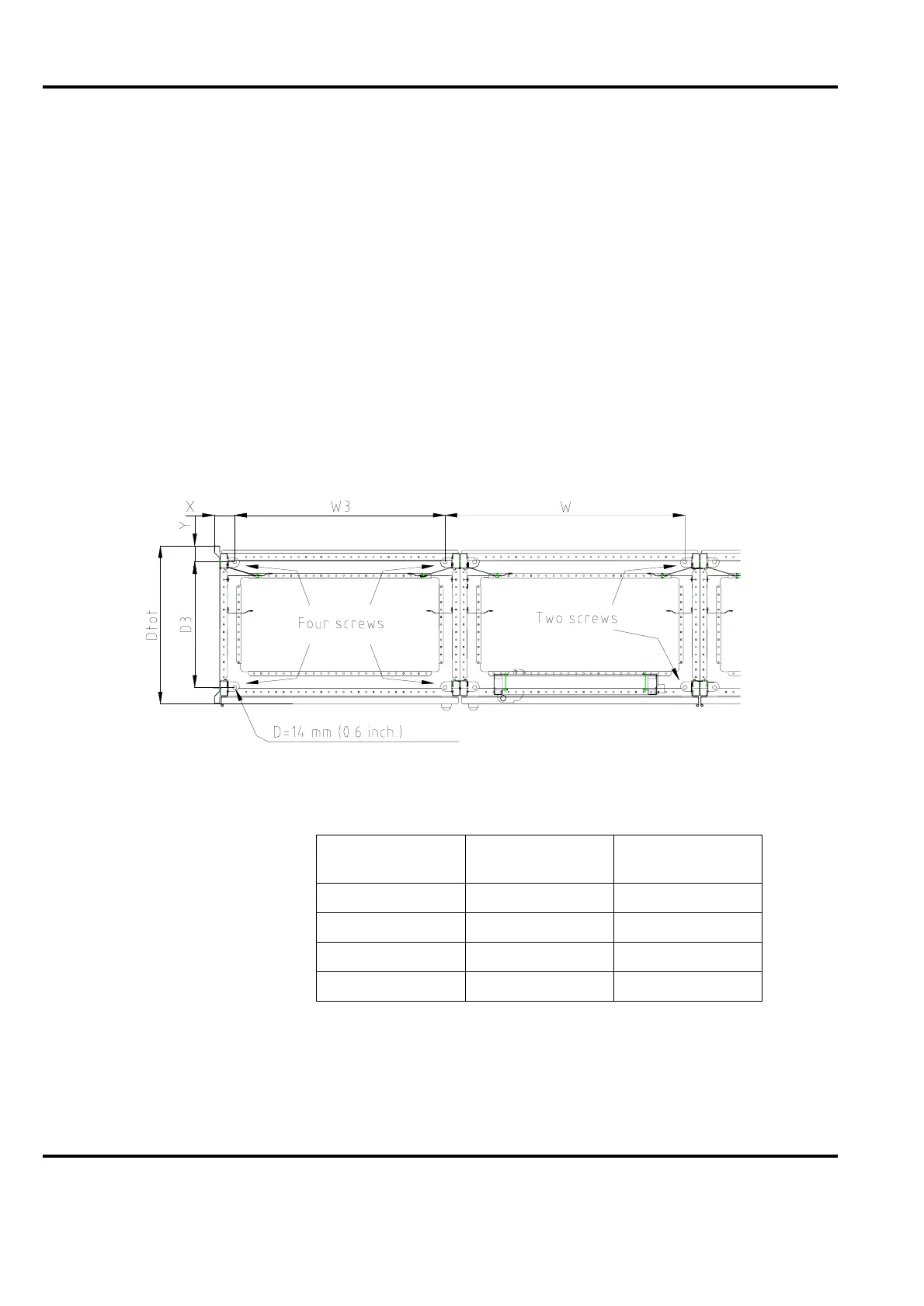

Figure B-4. Position of the Holes for fixing the Cabinet(s) to the Floor
Table B-2. Distances in Figure B-4
Symbol in
Figure B-4
RM500V1 RM500V2
X 69 mm (2.7”) 69 mm (2.7”)
W3 702 mm (27.6”) 602 mm (23.7)
W 800 mm (31.5”) 700 mm (27.6”)
Y 56 mm (2.2”) 56 mm (2.2”)
