6HFWLRQ 2SHUDWRU ¶V,QWHUIDFH
3BSE 002 415R701 Rev A 1-105
Figure 1-46 below shows a monochrome VT 100 terminal with keyboard.
A feature you are offered when you use a personal-computer-based operator station is that it can
be connected via the communication link RCOM and a dedicated, or a public, telephone
network. However, you must be aware of its limited performance.
 &HQWUDO2SHUDWRU
A central operator station of the Advant Station 500 Series or MasterView 800/1 type provides a
powerful operator’s interface.
Examples of the main functions are as follows:
• Presentation of user-designed process displays, standard displays, curve displays and
reports
• An effective operator’s dialog for manual control
• Alarm and event presentation
• Presentation of the status of the control system
• Display design “on-line” directly on the display screen
• Handling of group alarm
• Presentation of the status of signals
• Presentation of trend curves.
The central operator station communicates with the application program and the process is
controlled via the signal and object files in the data base of the Advant Controller 450.

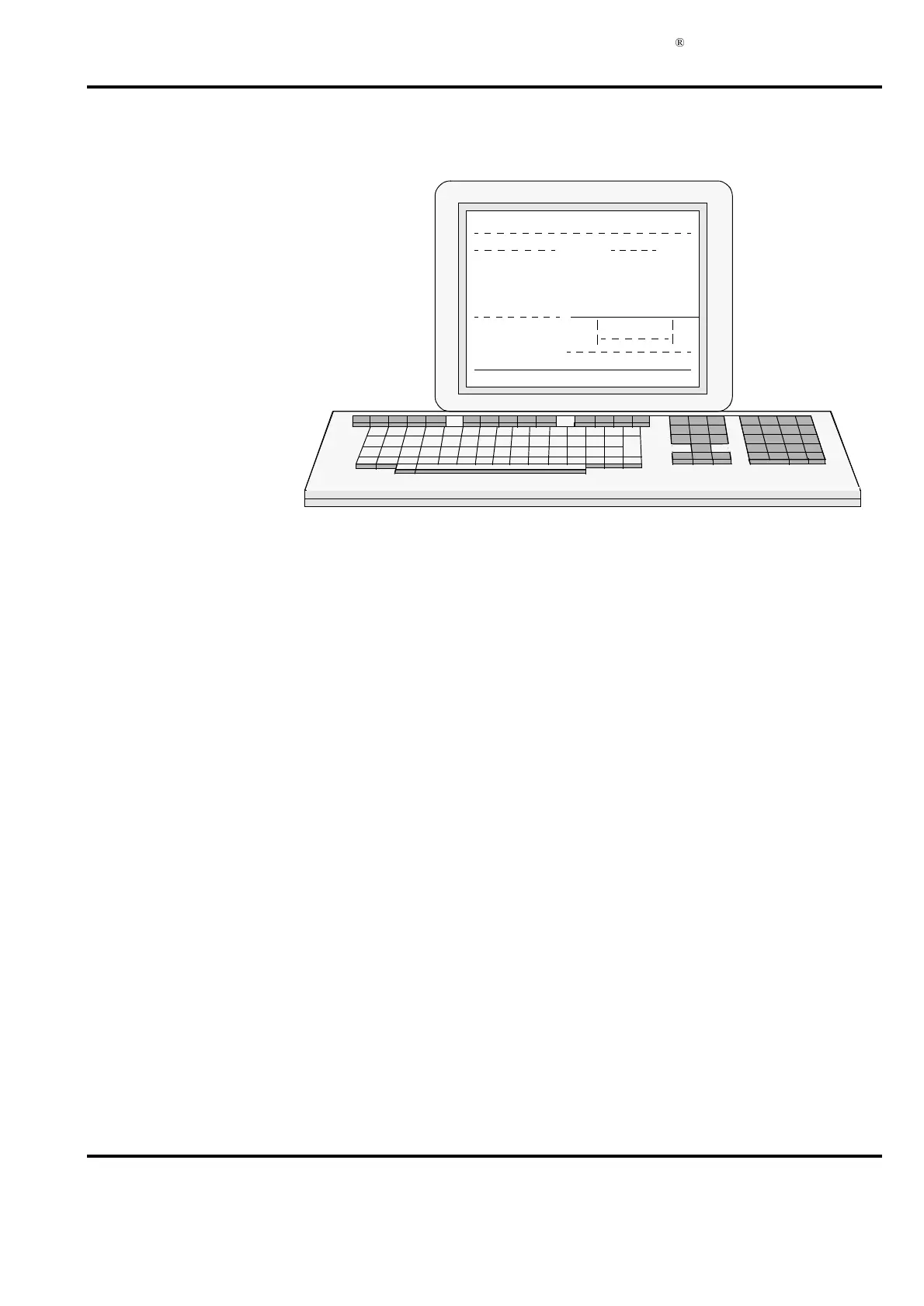

)LJXUH 977HUPLQDODQG.H\ERDUGIRU0DVWHU9LHZ
1 CONVEYER/SCRAP CONTROL 1994-05-19/10:22:00
MODE OF OPERATION STATISTICS
SELECT DISPLAY SELECT VARIABLE OTHER FUNCTIONS RESTART
SPEED REF
A 5,5m/s
B 16,7m/s
BAA
00
LOCAL
AUTO
AUTO: START
MAN BACKWARD STOP
MAN FORWARD STOP
SHIFT WEEK
150
10
3
9.3TON
DUMPING
SHORT STOP
LONG STOP
SCR.WEIGHT
15
1
-
1.2
