Function Blocks Command Reference 175
OFF-delay Timer Function
Block

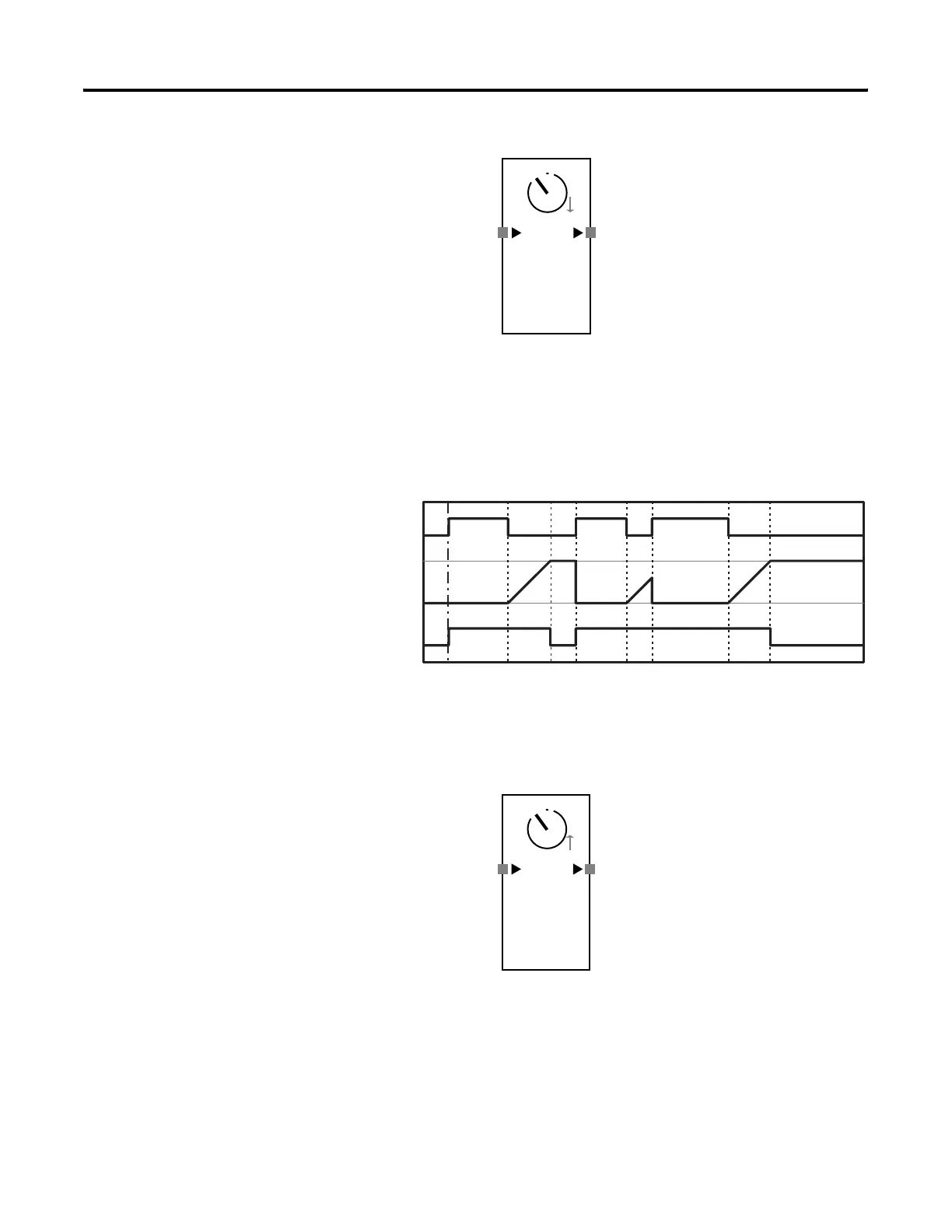

OFF-delay Timer Function Block Diagram
The OFF-delay timer function block performs a timer operation for an
OFF-delay set in 10 ms increments. The range for this delay is from
0 ms…300 seconds. The default setting is 0 ms.
OFF-delay Timer Function Block Timing Chart
ON-delay Timer Function
Block
ON-delay Timer Function Block Diagram
The ON-delay timer function block performs a timer operation for an
ON-delay set in 10 ms increments. The range for this delay is
0 ms…300 seconds. The default setting is 0 ms.
Input
Output Enable
OFF
Input
Idle to Run
Output
Enable
Set Value
Timer
Value 0
Input
Output Enable
ON
