Publication 1752-UM001A-EN-P - October 2006
Installing and Wiring the SmartGuard 600 Controller 27

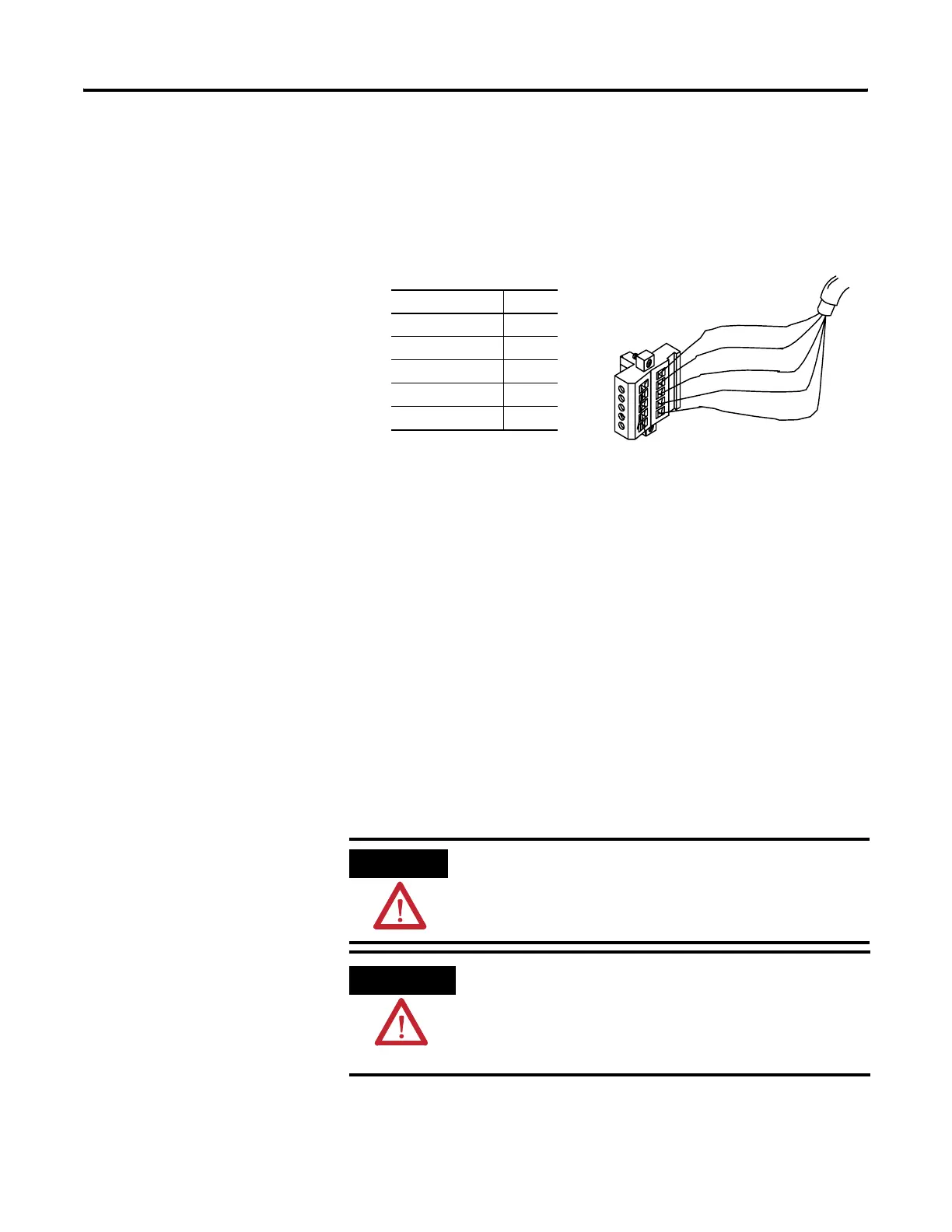

Connect to the DeviceNet port
Follow these steps to connect to the DeviceNet port.
1. Wire the connector according to the colors on the connector.
2. Attach the connector to the DeviceNet port.
3. Tighten the screws to 0.25…0.3 Nm (2.21…2.65 lb-in).
For detailed DeviceNet connection information, refer to the DeviceNet
Media Design Installation Guide, publication DNET-UM072. Also refer
to the Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1.
Connect to USB Port
Connect the USB communications connector to your personal
computer when you want to configure the network and controller
using RSNetWorx for DeviceNet software. Use a commercially
available USB-A to USB-B male/male cable to make the connection.
Connect To
Red Wire V+
White Wire CAN H
—Drain
Blue Wire CAN L
Black Wire V-
ATTENTION
The USB cable length must be less than 3 m (10 ft).
The USB port is intended for temporary programming purposes
only and is not intended for permanent connection.
WARNING
If you connect or disconnect the USB cable with power applied
to this module or any device on the USB network, an electrical
arc could occur. This could cause an explosion in hazardous
location installations. Be sure that power is removed or the area
is nonhazardous before proceeding.
D
D
D
D
D
Red
White
Blue
Black
