30 Installing and Wiring the SmartGuard 600 Controller
Wire Output Devices
Output Device Wiring
ATTENTION
Serious injury may occur due to a loss of required safety
functions.
Do not connect loads beyond the rated value of safety or test
outputs.
Do not use test outputs as safety outputs.
Wire the controller properly so that the 24V dc lines do not
touch the safety or test outputs.
Do not apply the power supply to the test output terminals.
Ground the 0V line of the power supply for external output
devices so that the devices do not turn on when the safety
output line or the test output line is grounded.
Separate I/O cables from high voltage or high current lines.

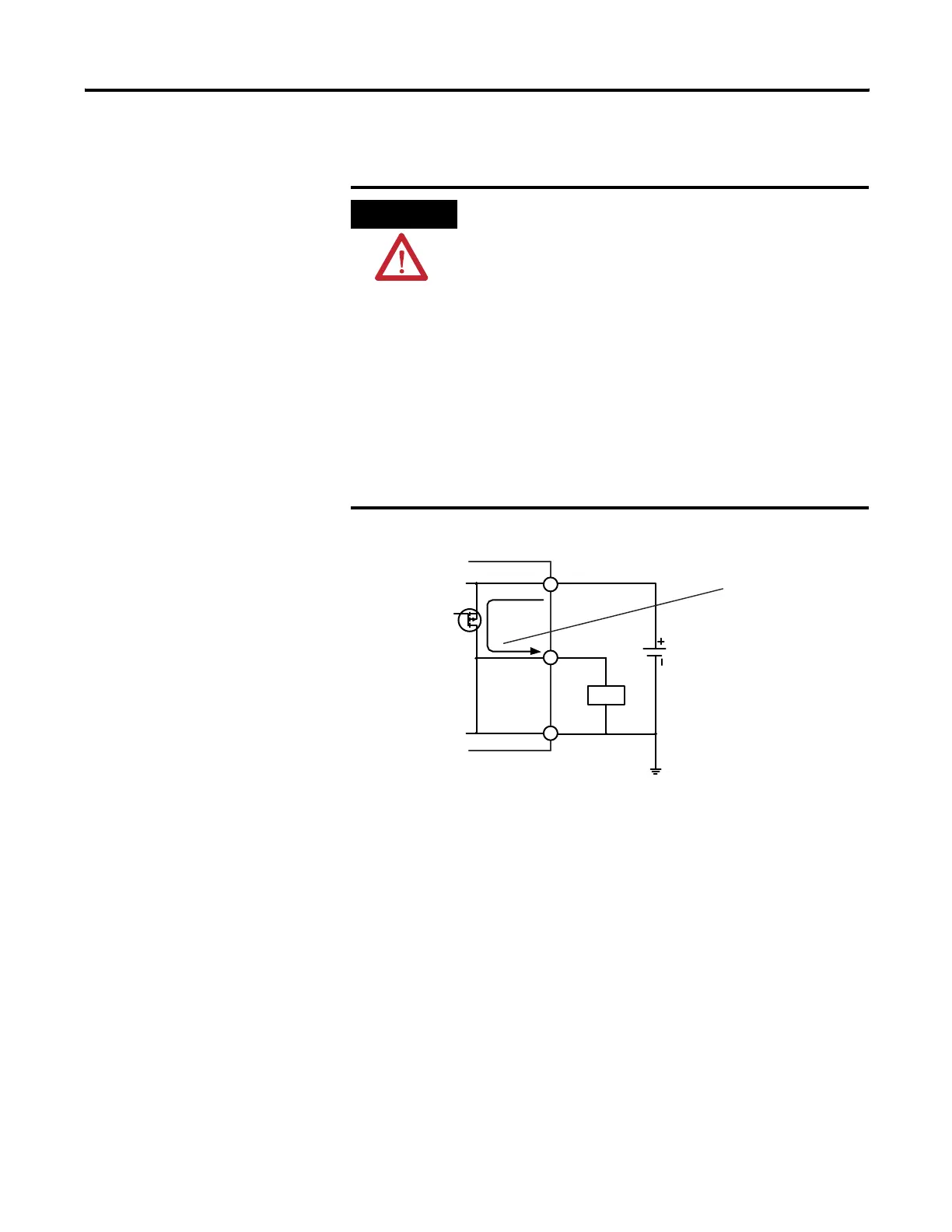

SmartGuard 600
Controller
V2
G2
24V dc
OUTx
0.5 A Max
Load
