100
Upgrade and Mai
ntenance Manual
TX100
S3
Power supply
6.2.5
Inst
alling the power supply
unit

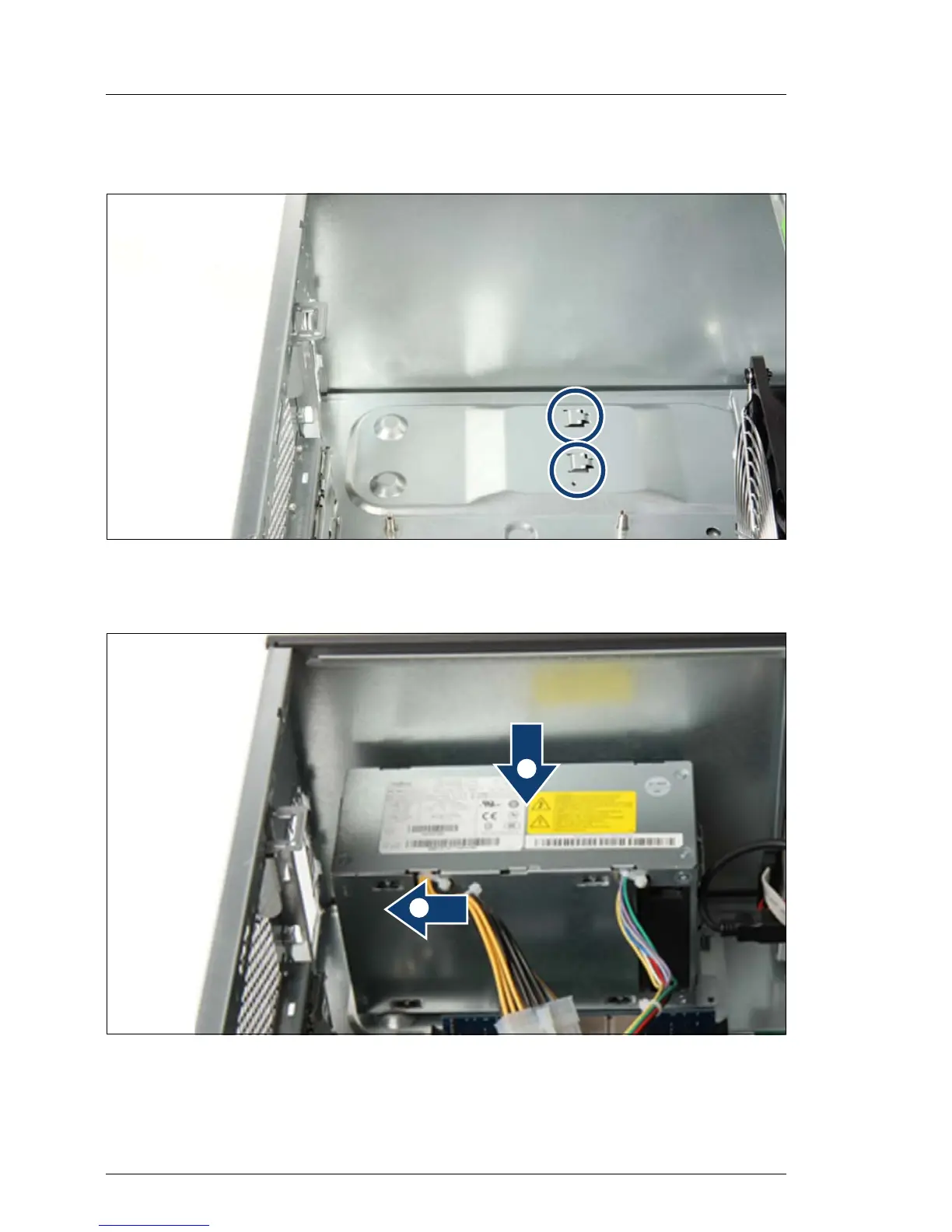

Figure 38: Hooks for fastening the PSU
I
T
ak
e care, that the PSU is fastening into the hook
s (see circles).
Figure 39: Instal
ling the PSU
Ê
Insert the new PSU into the chassis (1).
Ê
Slide the new PSU towards the rear of the chassis (2).
/
0
99
101
