282
Upgrade and Mai
ntenance Manual
TX100
S3
Front panel and external connectors
13.2.4
Removing the defective front USB module

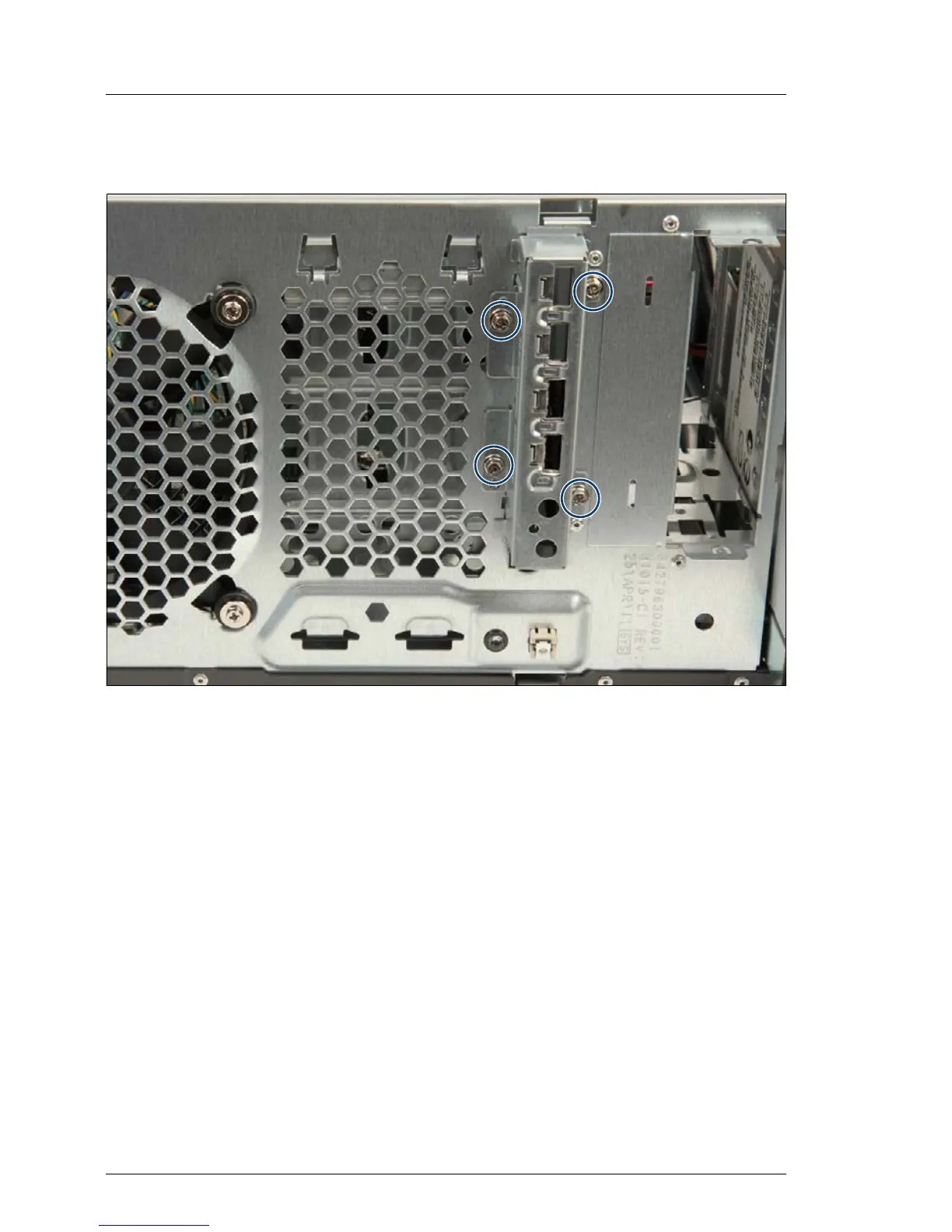

Figure 192: Removing the fr
ont USB module
Ê
Remove the four screws of the front USB module (see circles).
Ê
Remove the front USB module.
281
283
