TX100 S3 Upgrade and Maintenance Manual 183
Expansion cards and backup units
9.3.4.3 Disconnecting the FBU adapter cable from the TFM

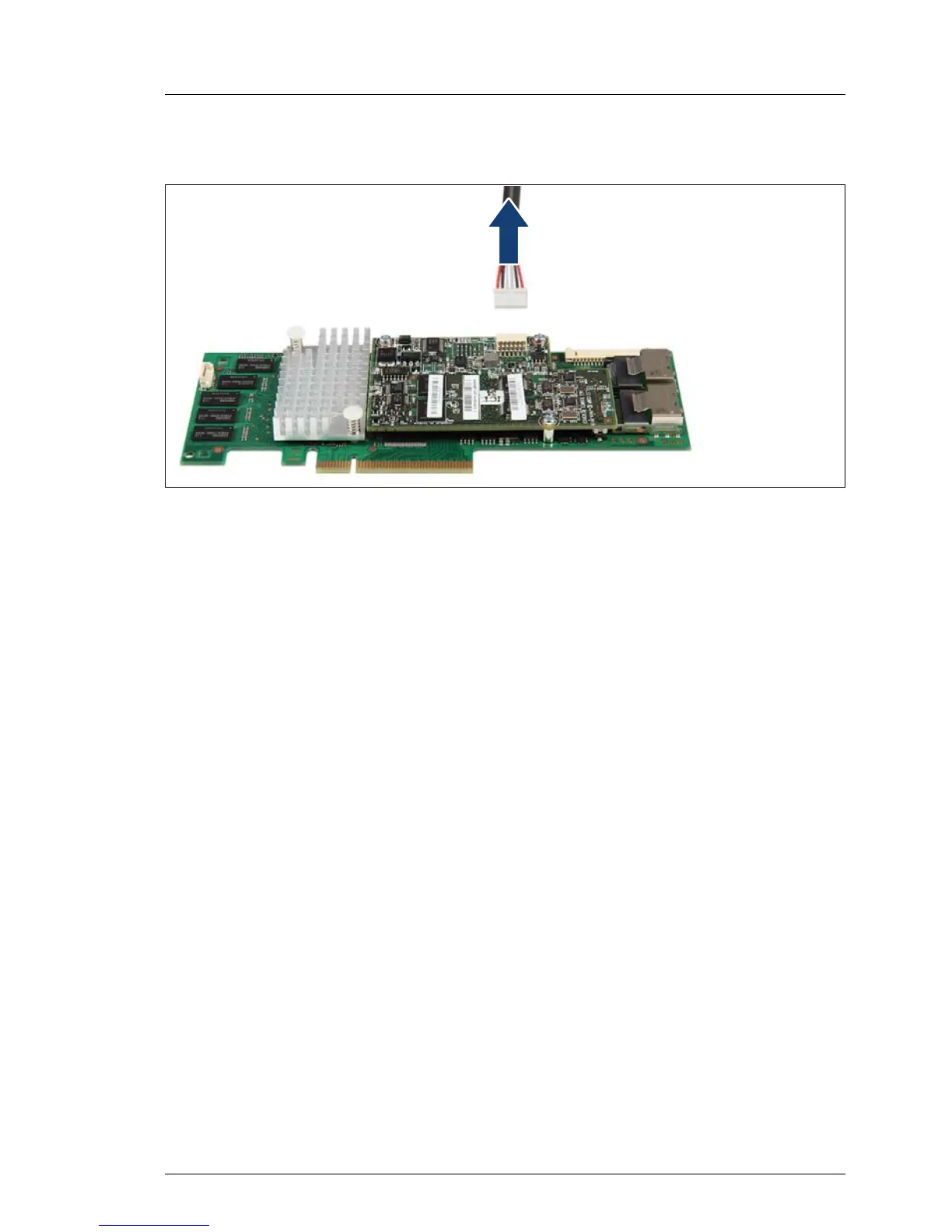

Figure 104: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Ê Remove the FBU adapter cable (see figure 102).
9.3.4.4 Removing the FBU holder from the chassis
Ê Remove the FBU holder from the chassis as described in section "Removing
the BBU holder from the chassis" on page 180.
9.3.4.5 Concluding steps
Perform the following procedures to complete the task:
Ê
Check carefully the cable routing and close the cable clamps.
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
