344 Upgrade and Maintenance Manual TX100 S3
Appendix
16.3.1.3 I/O panel connectors

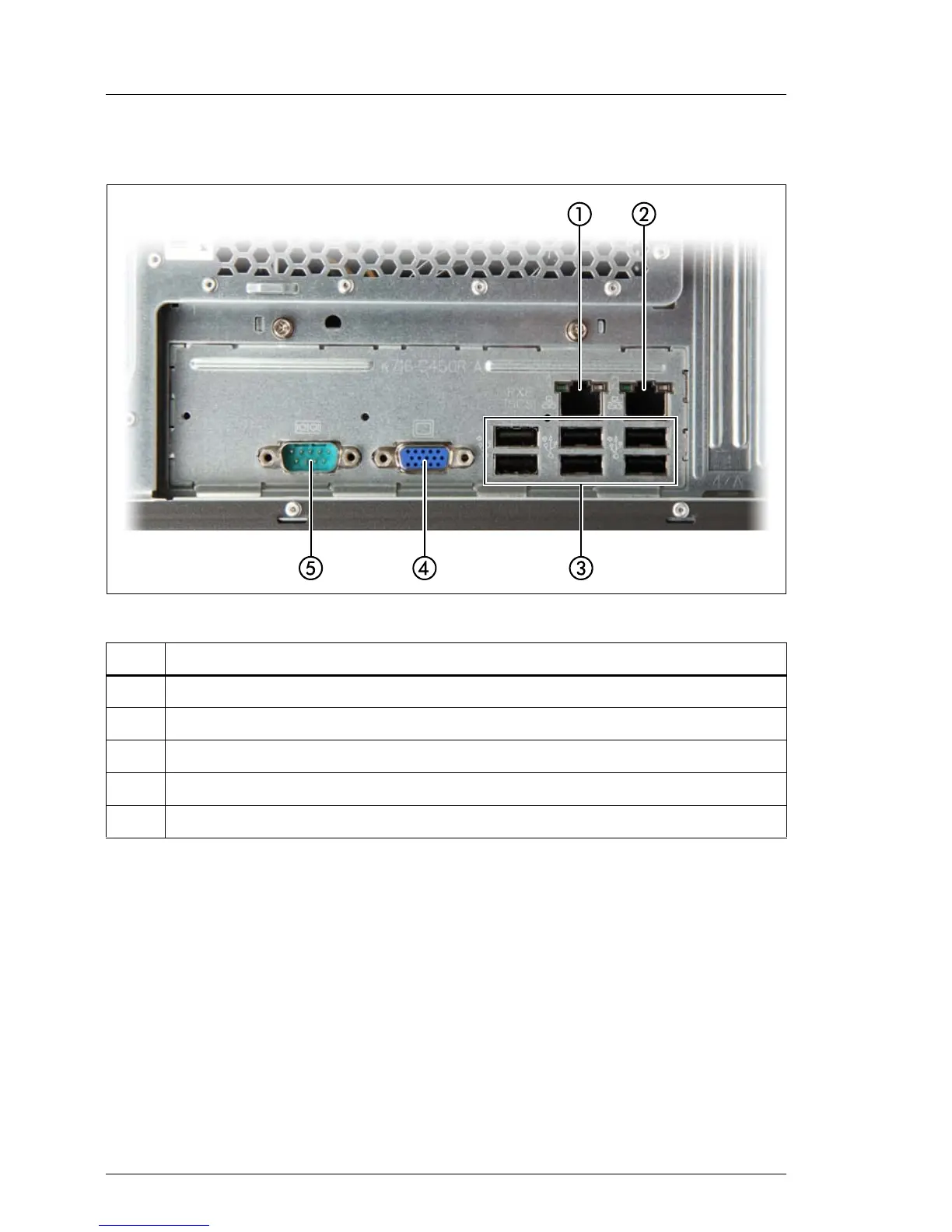

Figure 239: I/O panel connectors
I The chipset offers two integrated USB 2.0 Rate Matching Hubs (RMHs).
that enable lower power requirements and manages the transition of the
communication data rate from the high speed of the host controller to the
lower speed of USB full speed / low speed devices.
No. Description
1 Standard LAN1 connector
2 Standard LAN2 connector
3 USB connectors (x 6)
4 Video connector
5 Serial connector COM1
