296 Upgrade and Maintenance Manual TX100 S3
System board and components

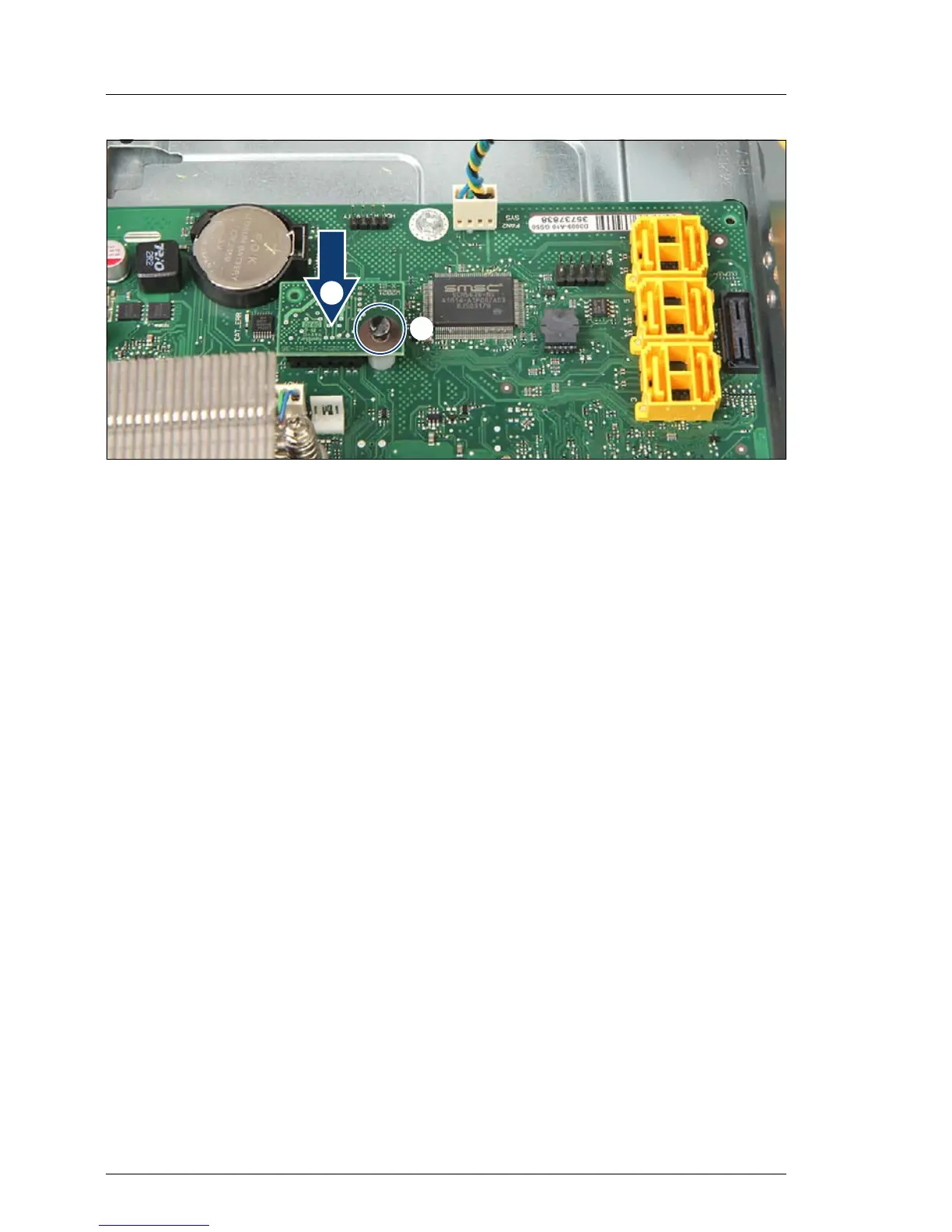

Figure 206: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japanese market) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm).
14.2.1.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê Enable TPM in the system board BIOS. Proceed as follows:
Ê Switch on or restart your server.
Ê As soon as the startup screen appears, press the [F2] function key to
enter the BIOS.
Ê Select the Advanced menu.
Ê Select the Trusted Computing submenu.
/
