Fujitsu PRIMERGY TX100 S3 Maintenance Manual

174 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units
9.3.2.3 Installing TFM to the RAID controller (if applicable)

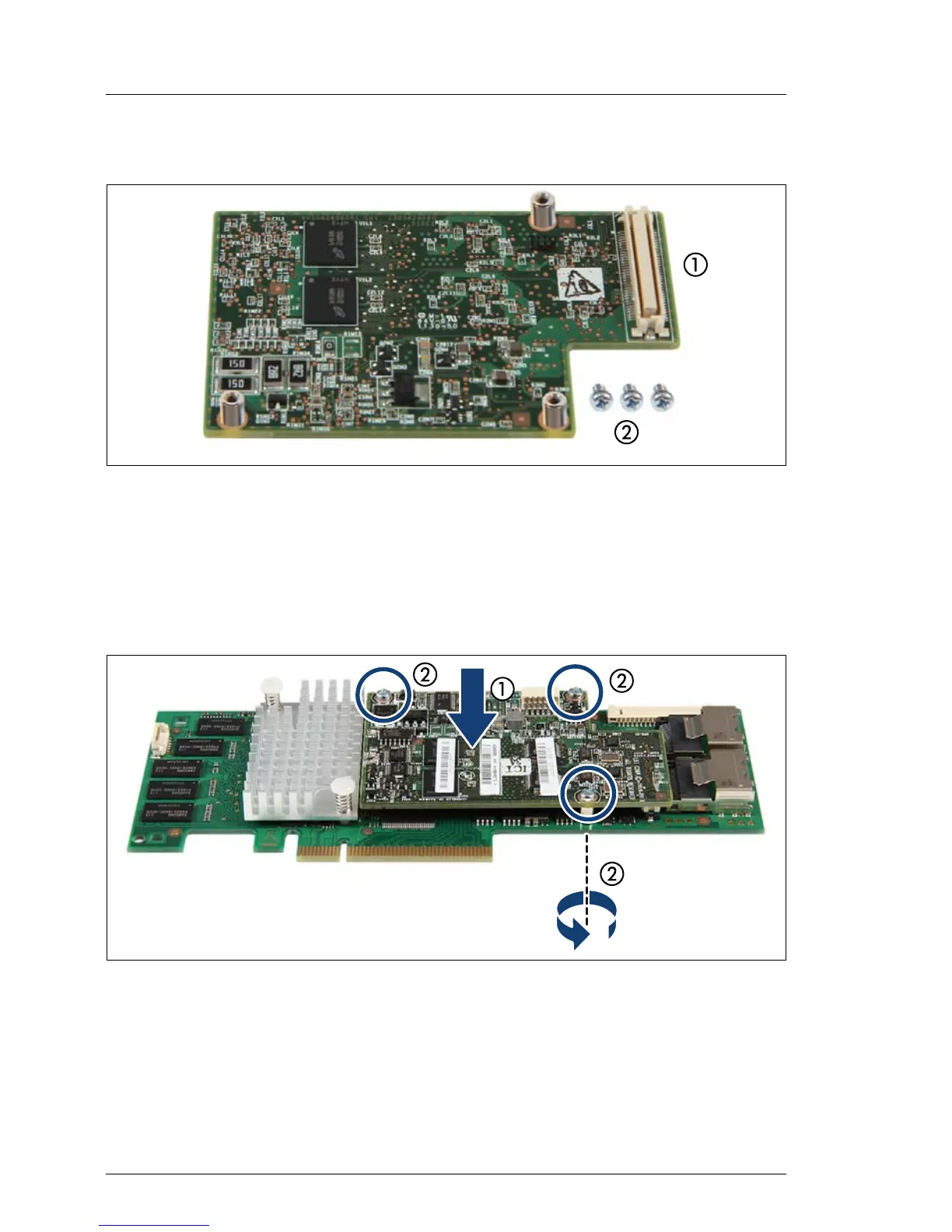

Figure 95: TFM kit
TFM kit (S26361-F3669-L110):
1 LSI TFM Module
LSZ:L3-25419-**
2 Screws
Figure 96: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Fasten the TFM on the RAID controller with the three screws from the TFM
kit (screw torque: 0.4 Nm) (2).
