26 Upgrade and Maintenance Manual TX100 S3
Before you start
2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Screw driver /
Bit insert
Screw Usage Type
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
System
board, slot
bracket,
chassis
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH0 / (+) No. 0
Slimline ODD M2 x 2.5 mm
(silver)
C26192-Y10-C62
Phillips
PH2 / (+) No. 2
USB 3.0
interface
card D3305
M3 x 5 mm
(silver)
(contained in card kit
S26361-D3305-A10)
TPM bit insert
Dedicated TPM
screw driver /
TPM module
fixing tool (for the
Japanese market)
TPM screw
One way
head
(black)
REM 3 x 15 mm
(black)
C26192-Y10-C176
Phillips
PH1 / (+) No. 1
TFM M2.5 x 4 mm
(silver)
C26192-Y10-C103
Phillips
PH2
hexagonal cross
SW5
System fans M5.0 x 16 mm
(silver)
C26361-K1015-C98

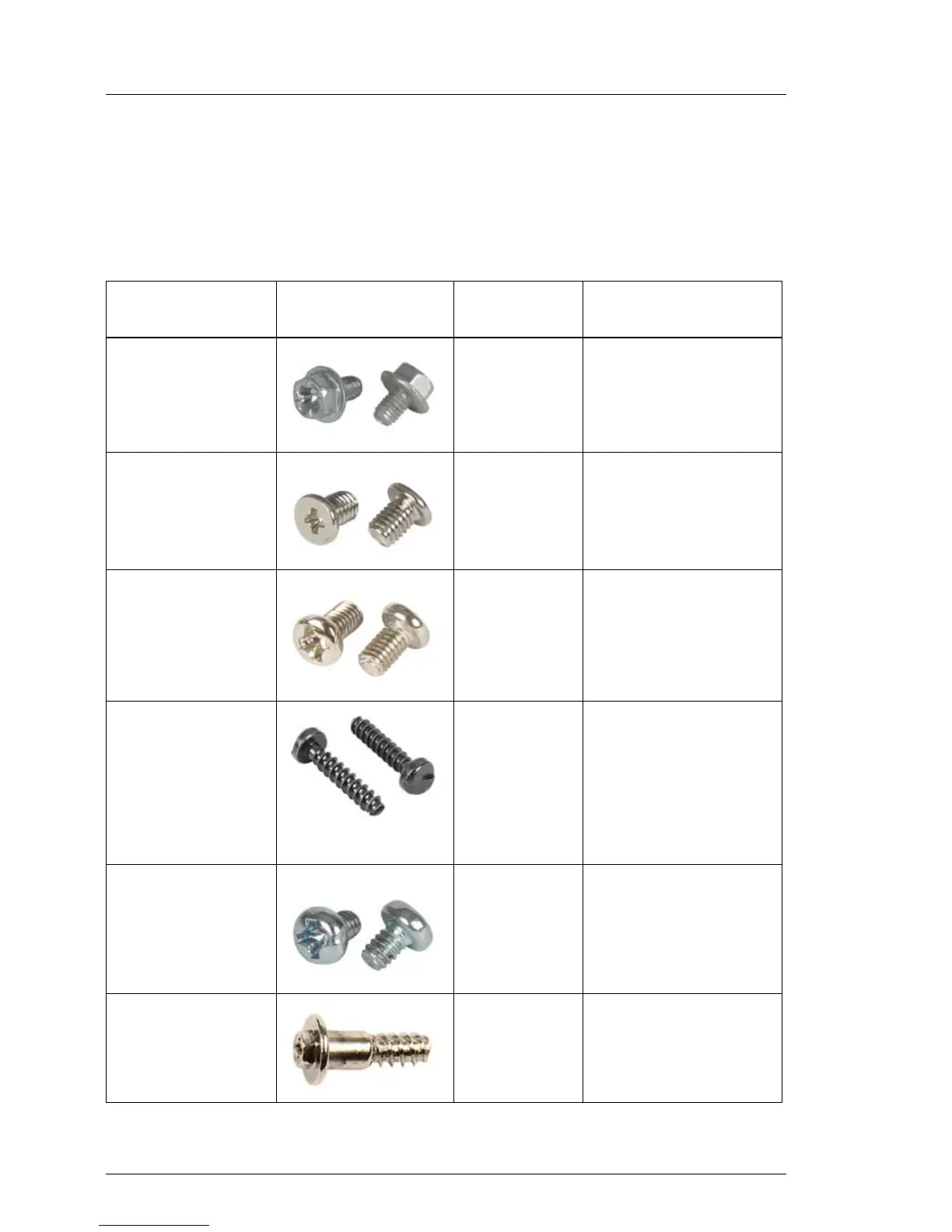

Table 3: List of required tools and used screws
