Fujitsu PRIMERGY TX100 S3 Maintenance Manual

318 Upgrade and Maintenance Manual TX100 S3
System board and components

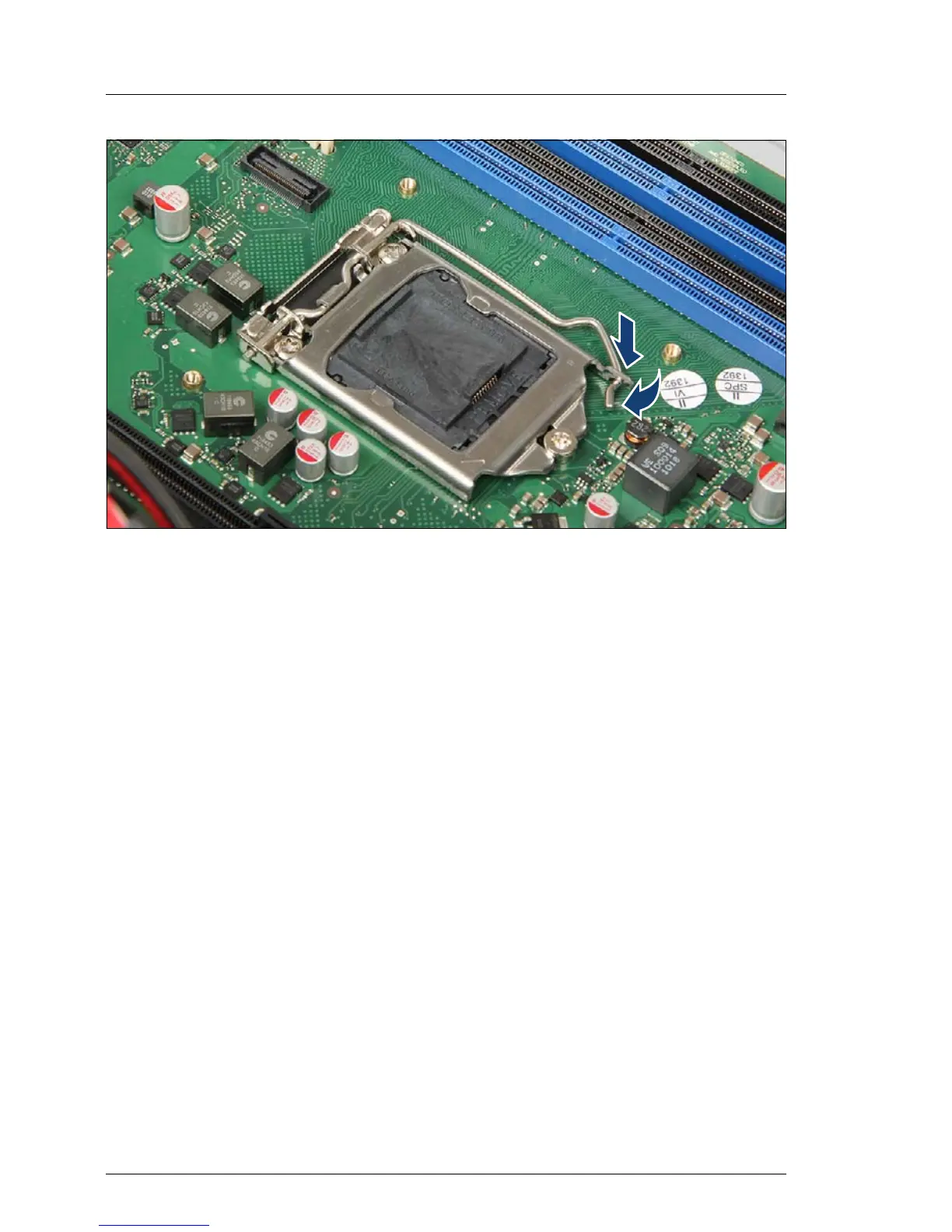

Figure 220: Installing the protective socket cover (defective system board) (C)
Ê Latch the socket lever under the load plate tab.
14.3.5 Concluding steps
Ê Reconnect all cables to the system board. For a complete cabling overview,
please refer to section "Cabling overview" on page 322.
Ê Reinstall all remaining system board components as shown in the related
sections:
– Heat sinks: refer to section "Installing the processor heat sink" on
page 226
– Memory modules: refer to section "Installing a memory module" on
page 205
I Install all memory modules into their original slots.
– Expansion cards: refer to section "Expansion cards" on page 150.
I Install all expansion cards into their original slots.
– TPM (if applicable): refer to section "Installing the TPM" on page 293
