Expansion cards and backup units
9.3.1.3 Preparing the BBU
Figure 87: BBU kit
BBU kit (S26361-F3257-L210):
1 LSI iBBU07 / LSI iBBU08
LSZ:L5-25034-** / LSZ:L5-25343-**
2 BBU holder
C26361-K644-C942
3 BBU cable
T26139-Y3987-V2

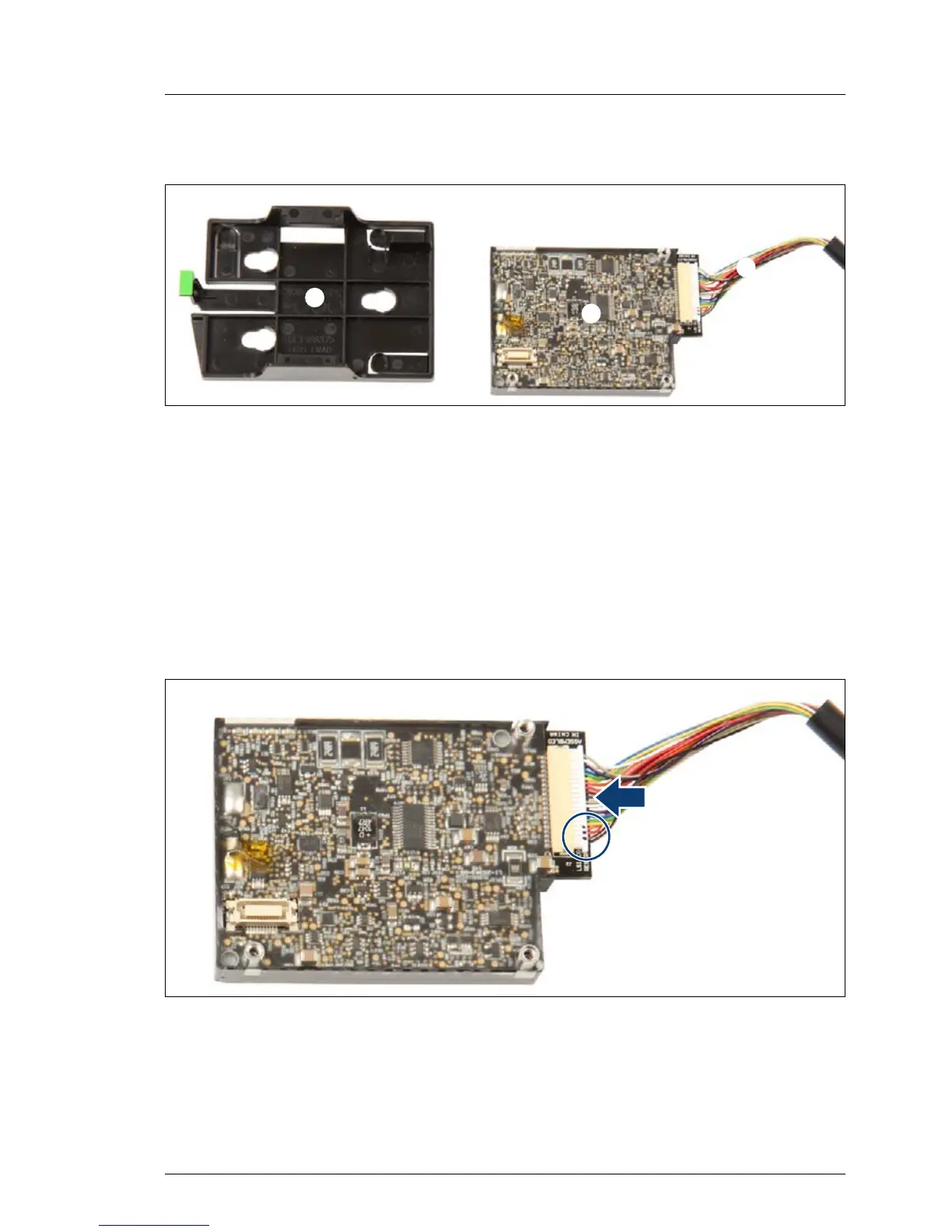

Figure 88: Connecting the BBU cable
Ê Connect the BBU cable to the BBU board as shown.
I The connector side with the three dots points towards you (see
circle).
/
