330 Upgrade and Maintenance Manual TX100 S3
Cabling
15.2.1 Required tools
● Preliminary and concluding steps: tool-less
● Replacing the power cable: tool-less
15.2.2 Preliminary steps
Before replacing the power cable, perform the following steps:
Ê Shut down the server as described in section "Shutting down the server" on
page 42.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting power cord" on page 43.
Ê Open the side cover as described in section "Removing the side cover" on
page 45.
15.2.3 Disconnecting/connecting the power cable

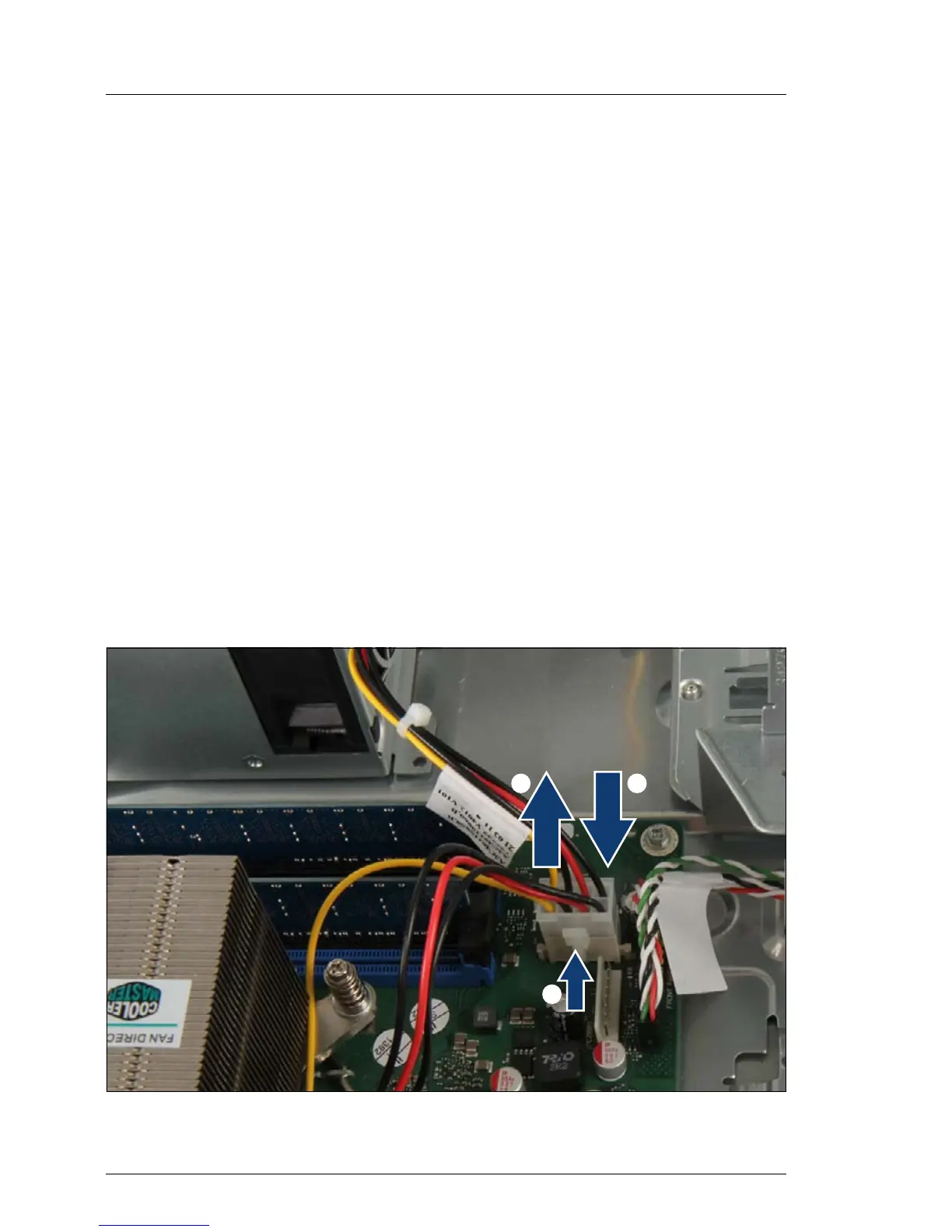

Figure 228: Disconnecting/connecting the power cable on the system board
/
0 1
