TX100 S3
Upgrade and Maintenance Manual
157
Expansion cards and backu
p units
9.2.2.3
Rem
oving an exp
ansion card

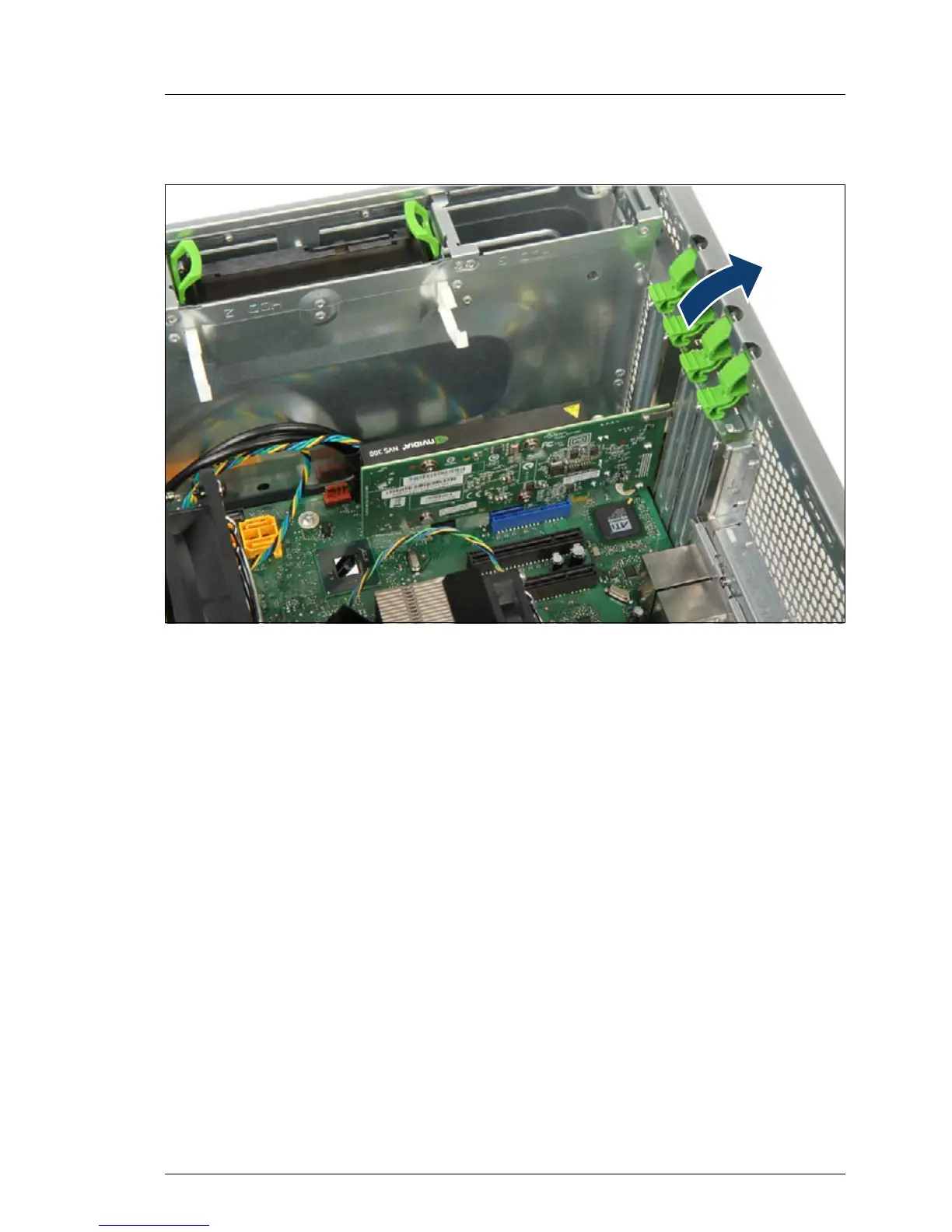

Figure 82: Removing
an expansion card
(A)
Ê
Press slightly on the upper end and swing outwards.
Ê
Open the slot bracket clamp.
156
158
