256 Upgrade and Maintenance Manual TX100 S3
Accessible drives

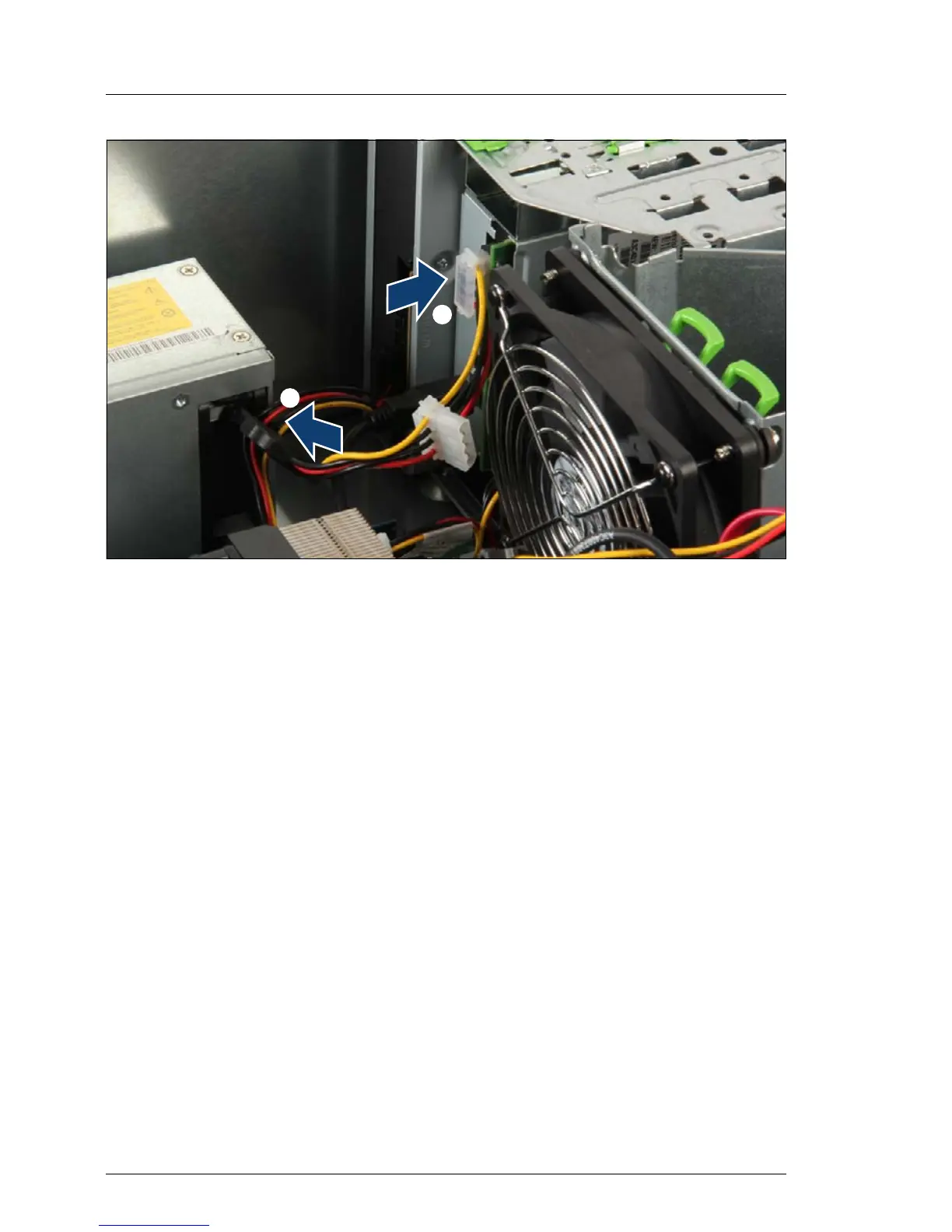

Figure 168: Connecting power cable to the backup drive
Ê Connect the power adapter cable to the power cable connector P7 (1). See
figure 227 on page 329.
Ê Connect the free end of the power adapter cable to the backup drive (2).
12.2.7 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the power cord to the power supply unit and secure it with a cable
tie as described in section "Connecting the server to the mains" on page 59.
Ê Verify if your backup software solution requires additional configuration after
installing, removing or replacing an accessible drive as described in section
"Verifying and configuring the backup software solution" on page 77.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
/
