TX100 S3 Upgrade and Maintenance Manual 343
Appendix
16.3.1.2 Onboard settings

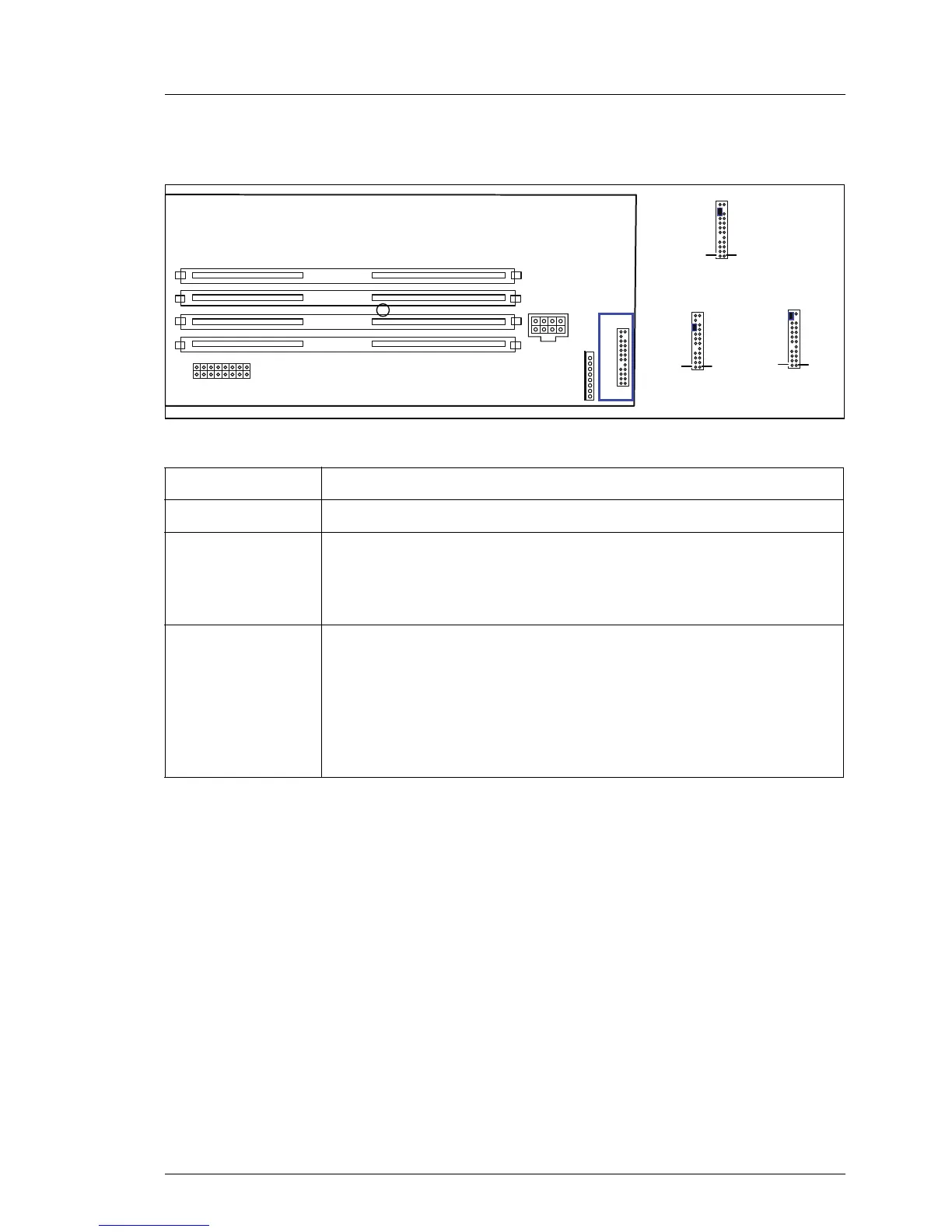

Figure 238: Jumper
When the CMOS battery is removed from a system board, the password set by
customers is kept and also other CMOS settings are restored except date/time.
Setting Description
Default Password skip disabled and recovery BIOS disabled.
PWD Skip Password skip enabled.
The password is deleted and the default BIOS settings are
applied after “PWD Skip” jumper was set once.
RCVR Recovery BIOS enabled.
Use this function only if the system BIOS is destroyed.
After flashing a new Recovery BIOS from a memory stick
the password and all configuration settings are set to
default.
POWER1
DIMM2A
DIMM1A
DIMM2B
DIMM1B
Front panel
SATA
PWR
PC2009
Temp. Sensor
Default
PWD Skip
RCVR
POWER
Pin 1
Pin 1
Pin 1
Pin 2
Pin 2
Pin 2
