TX100 S3 Upgrade and Maintenance Manual 265
Accessible drives
12.3.6.2 Installing the cover in bay 2

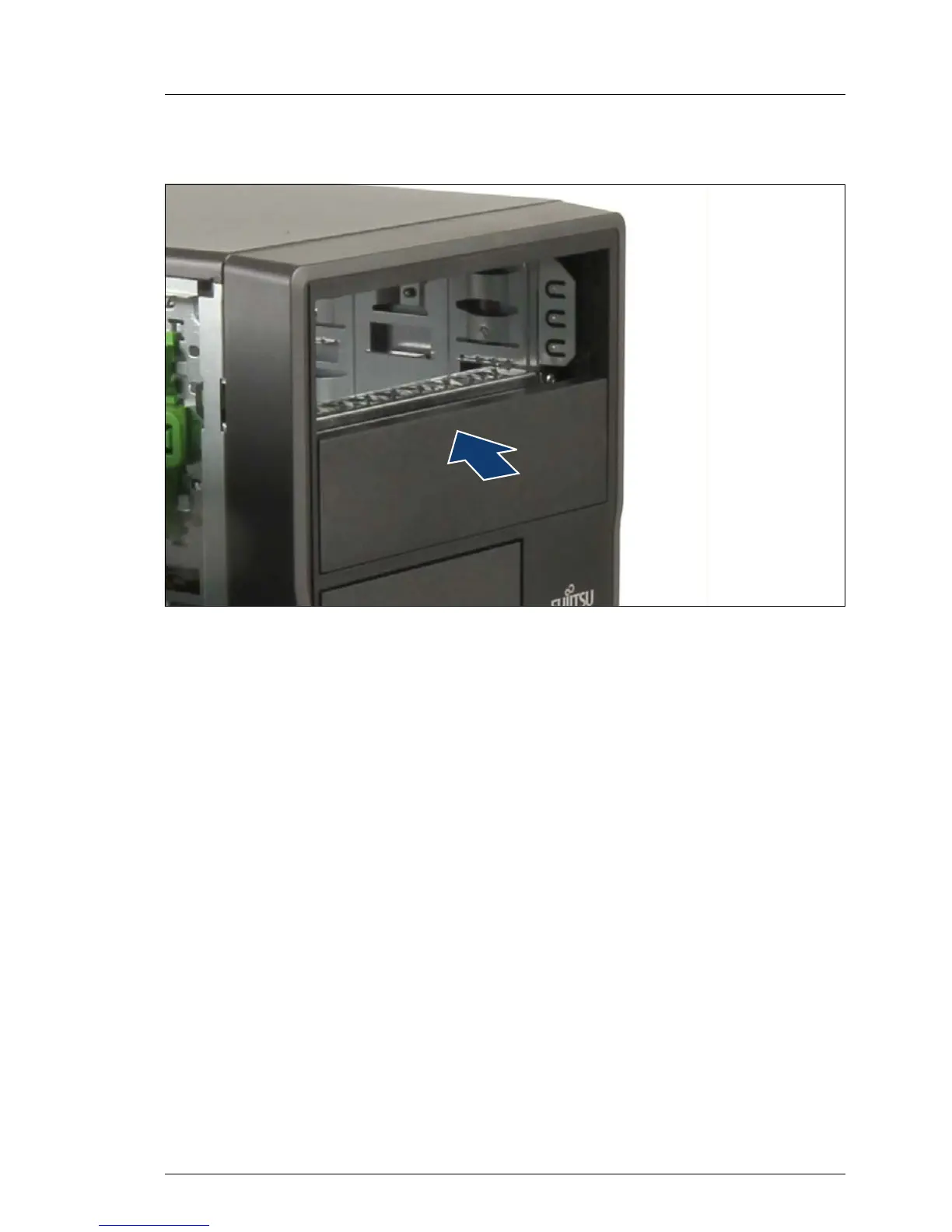

Figure 176: Installing the cover of bay 2
Ê Insert the cover in bay 2 and carefully push in until it locks in place.
12.3.7 Concluding steps
Perform the following procedures to complete the task:
Ê Secure the fixation plates on the chassis (see section "Installing accessible
drives" on page 237).
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the power cord to the power supply unit and secure it with a cable
tie as described in section "Connecting the server to the mains" on page 59.
Ê Verify if your backup software solution requires additional configuration after
installing, removing or replacing an accessible drive as described in section
"Verifying and configuring the backup software solution" on page 77.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
