TX100 S3 Upgrade and Maintenance Manual 291
System board and components
14.1.3 Replacing the defective CMOS battery

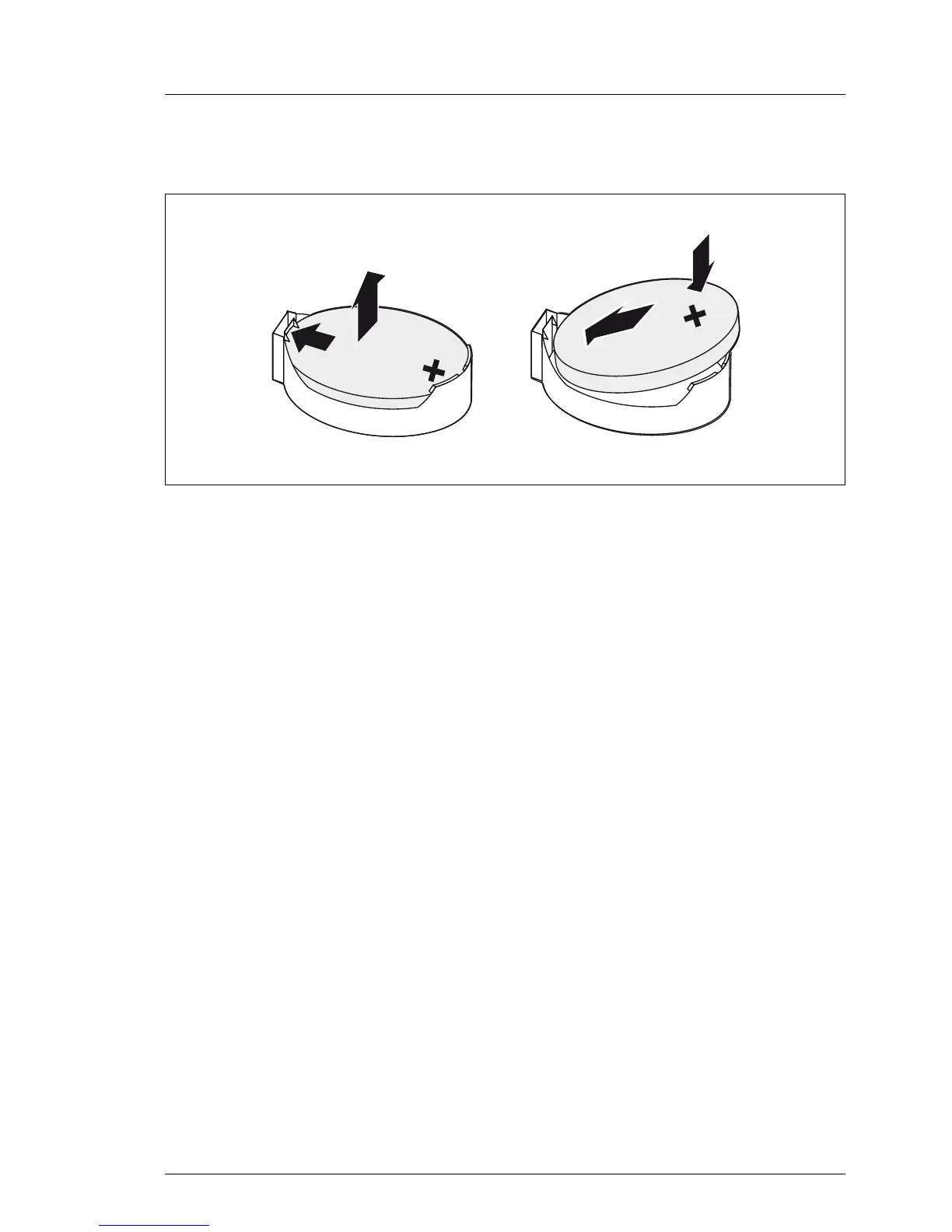

Figure 201: Replacing the CMOS battery
Ê Press the locking spring into direction of the arrow (1), so that the lithium
battery jumps out of its socket.
Ê Remove the battery (2).
V CAUTION!
Sharp tools such as screw drivers might damage system board
components in case of slipping.
If the battery cannot be ejected without the help of a tool, it is
recommended to use a tooth pick.
Ê Insert a new lithium battery of the same type into the socket (3) and (4).
1
2
3
4
