TX100 S3 Upgrade and Maintenance Manual 335
Cabling
15.3.3 Disconnecting/connecting the front USB cable

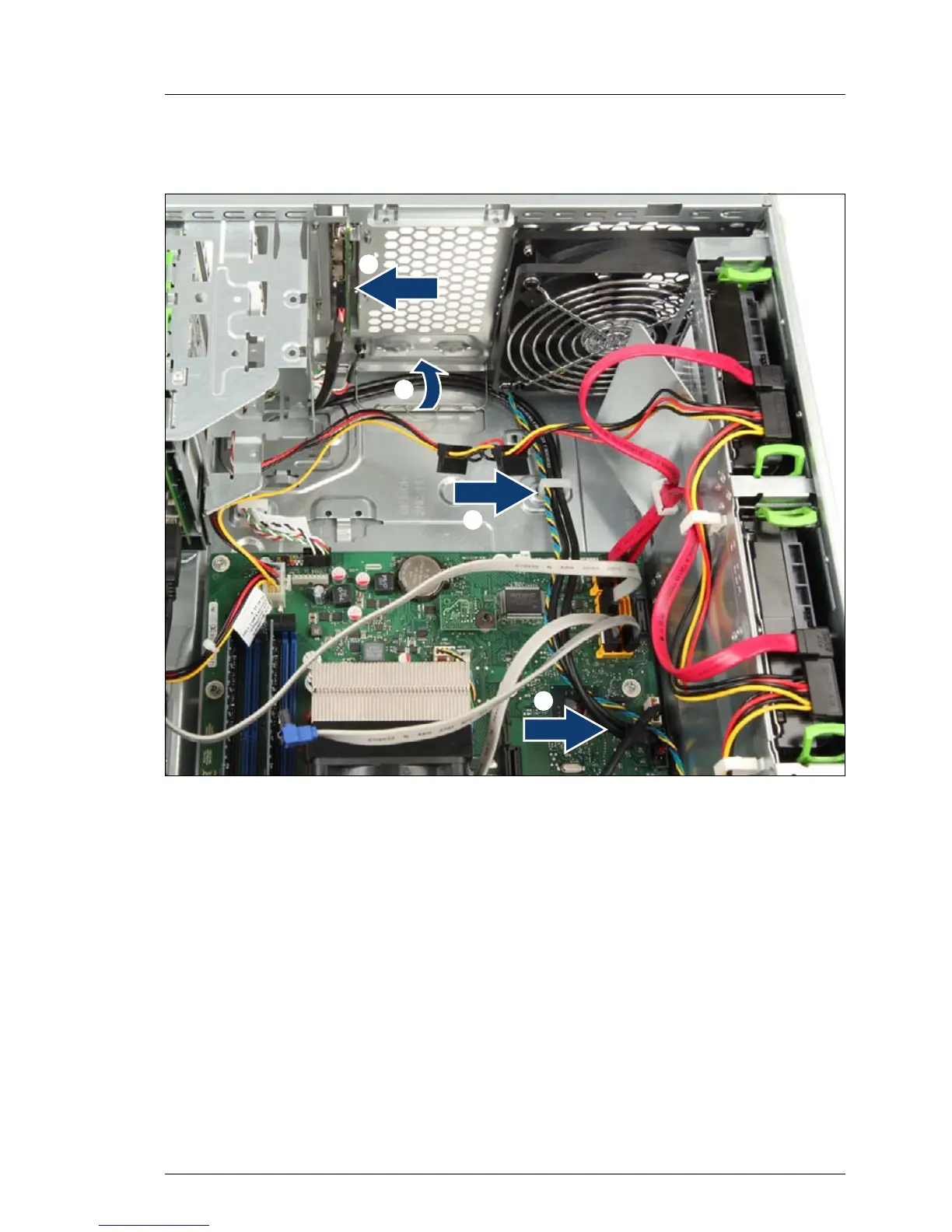

Figure 232: Replacing the front USB cable
Ê Open the cable clamp (1).
Ê Open the retaining bracket (2).
Ê Disconnect the defective front USB cable from the front USB module (3).
Ê Disconnect the defective front USB cable from system board connector
USB FRONT (4).
Ê Remove the defective front USB cable.
Ê Connect the new front USB cable on the front USB module (3).
Ê Connect the new front USB cable on system board connector
USB FRONT (4).
/
