Fujitsu PRIMERGY TX100 S3 Maintenance Manual

240 Upgrade and Maintenance Manual TX100 S3
Accessible drives
12.2.4 Installing an optical disk drive (ODD)
12.2.4.1 Preparing the optical disk drive
I There are two fixation plates for accessible drives. You need one fixation
plate for an accessible drive to be installed.

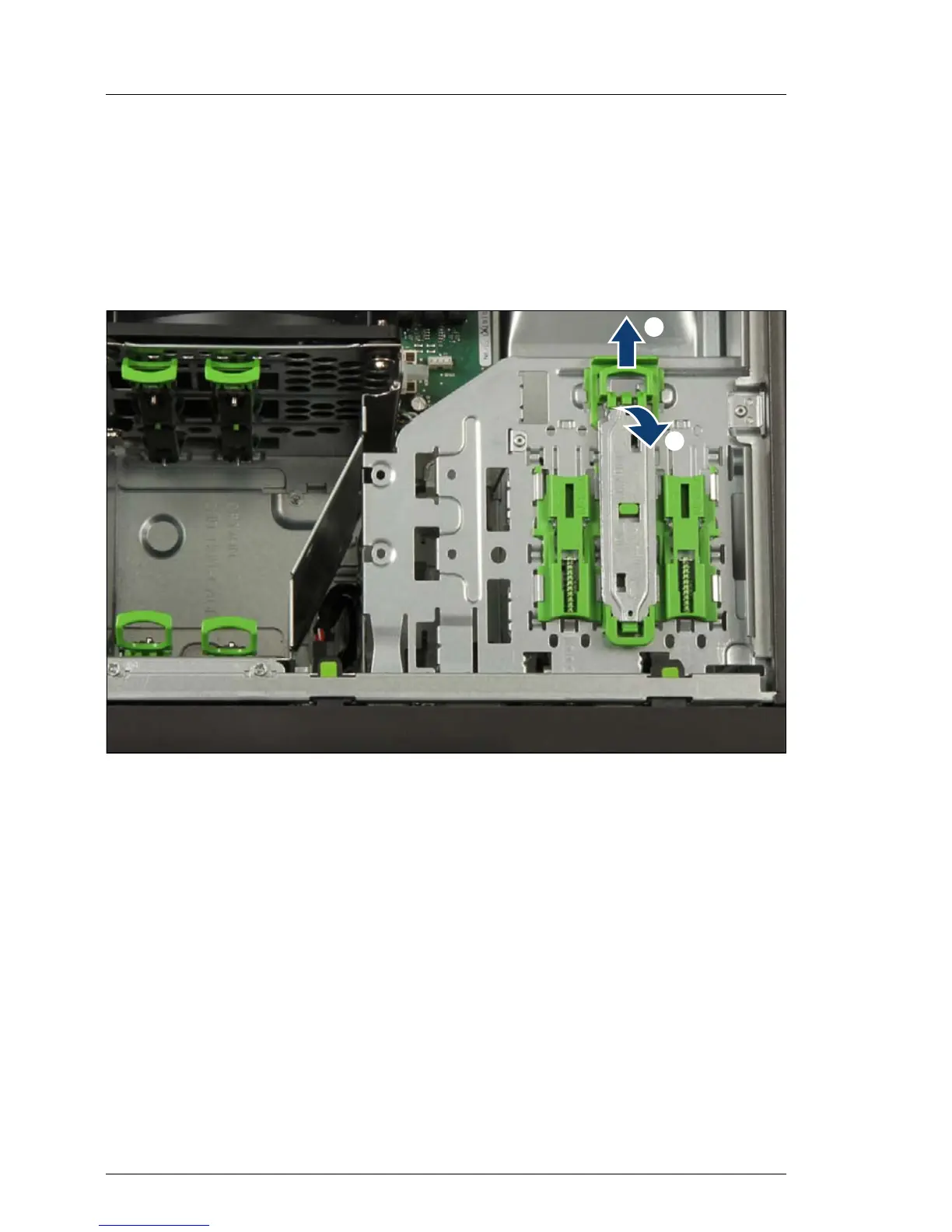

Figure 148: Removing the fixation plate from the chassis
Ê Pull the green handle outward (1).
Ê Lift up the fixation plate and take it out (2).
/
