Front panel and external connectors
13.1.7 Installing the On/Off button and the HDD activity
LED

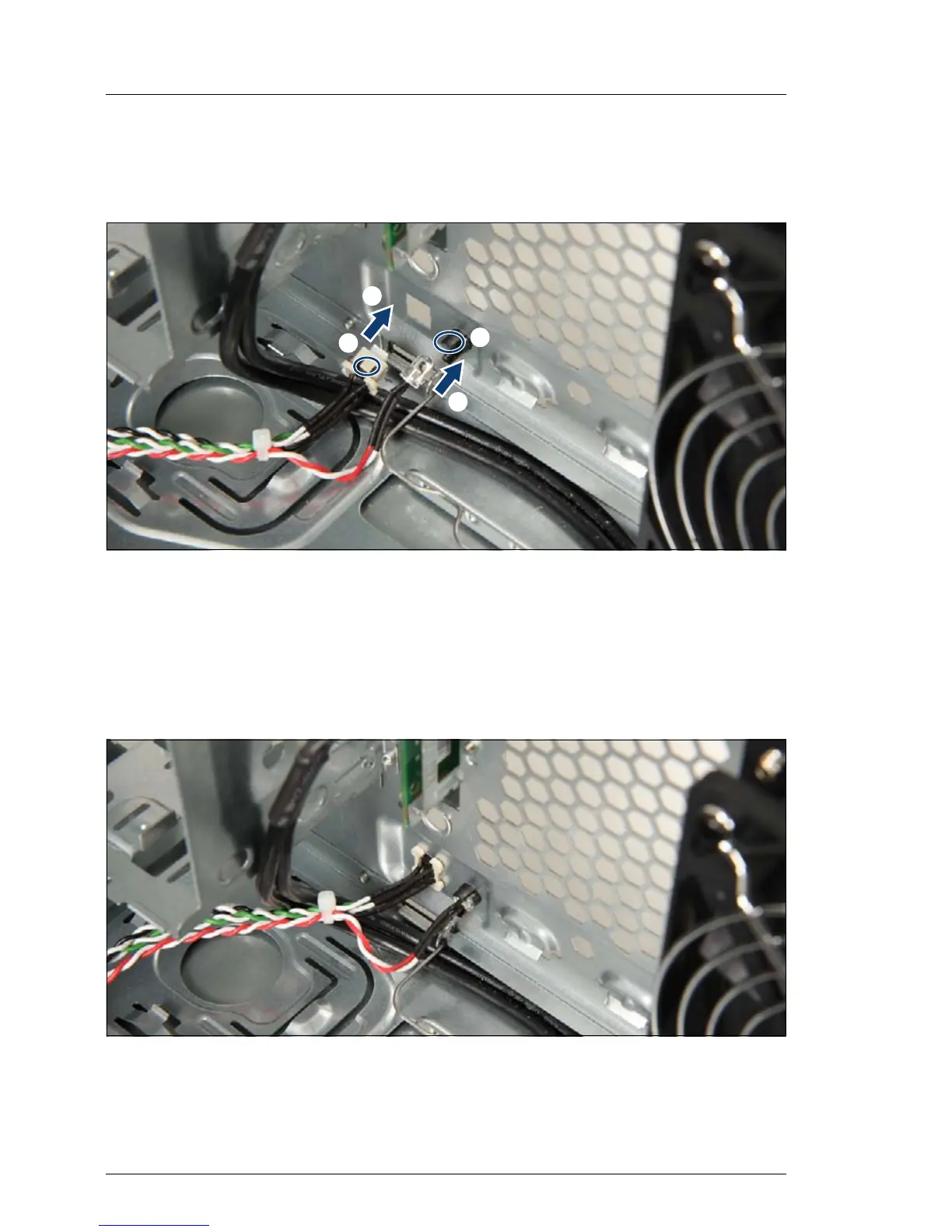

Figure 189: Installing the On/Off button
Ê Insert the On/Off button in the direction shown until it snaps in place (1).
I Take care of the orientation of the On/Off button. If it is installed in the
other direction, it does not work properly.
Ê Insert the HDD activity LED in the direction shown until it snaps in place (2).
Figure 190: On/Off button and LED installed
/
/
