Hard disk drives
7.2.6 SATA cabling to SATA RAID controller

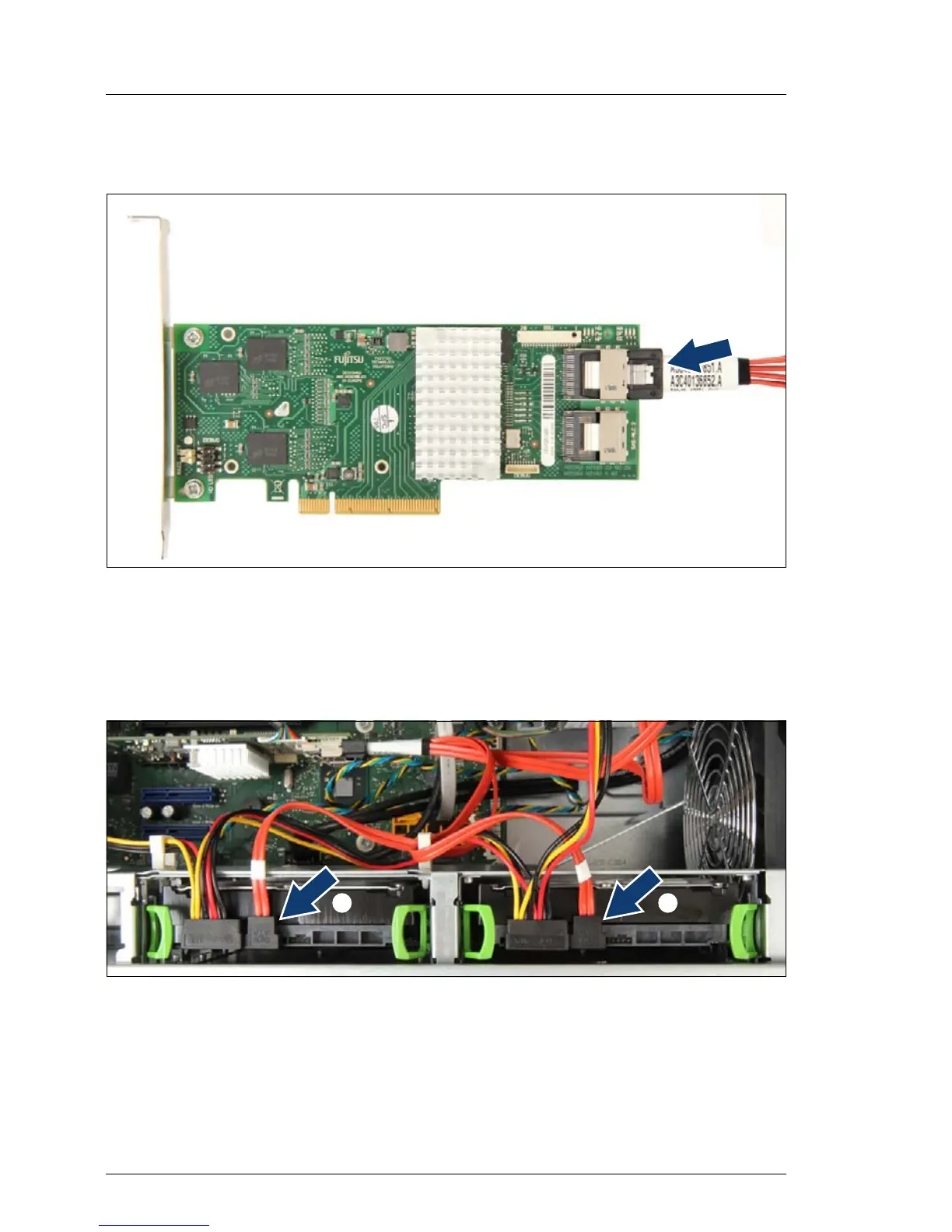

Figure 52: Connecting SATA cable to RAID controller
Ê Connect the SATA cable to connector MLC1 of the SATA RAID controller.
Ê Install the SATA RAID controller in slot 3 as described in section "Expansion
cards and backup units" on page 147.
Figure 53: Connecting SATA cables to HDD 1/2
Ê Connect the SATA cable connector P1 to HDD 1 (1). See figure 227 on
page 329.
Ê Connect the SATA cable connector P2 to HDD 2 (2). See figure 227 on
page 329.
