TX100 S3 Upgrade and Maintenance Manual 145
System fan modules

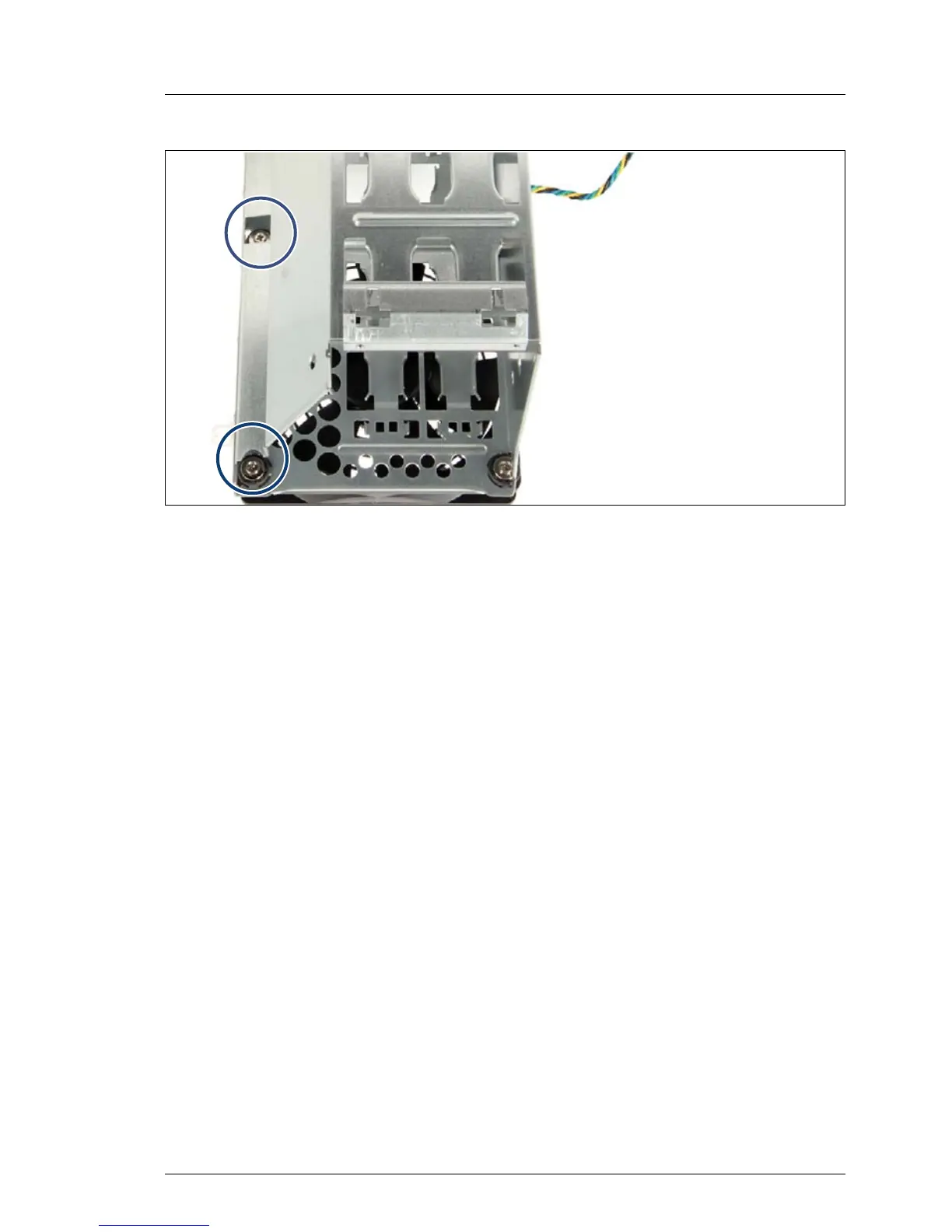

Figure 76: Installing the system fan module 2
Ê Fasten the screws (see circles).
8.3.5 Concluding steps
Perform the following procedures to complete the task:
Ê Install the HDD cage as described in section "Installing the HDD cage" on
page 63.
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
