160 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units

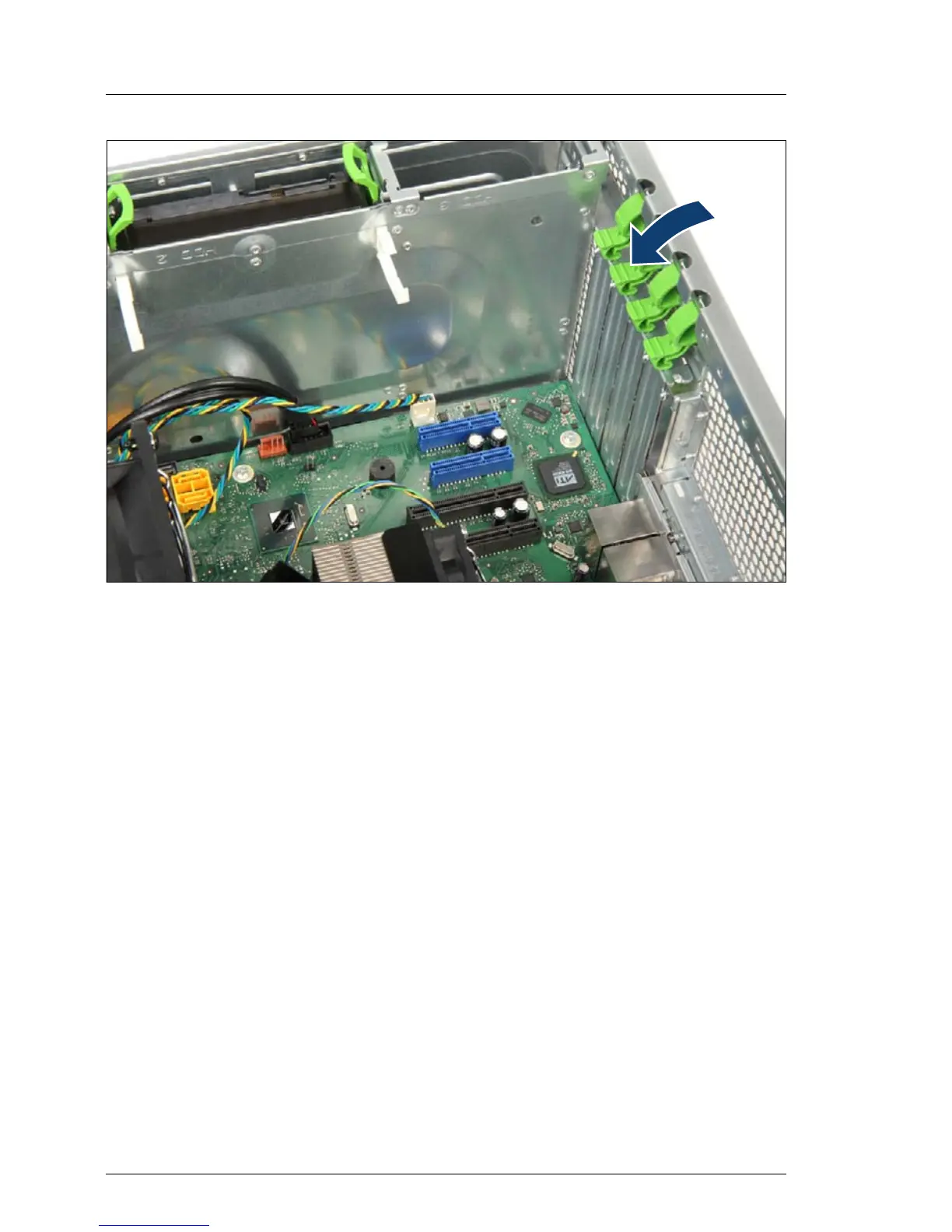

Figure 85: Installing a PCI slot bracket (B)
Ê Close the slot bracket clamp.
9.2.2.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê If applicable, connect all external cables to the expansion card installed.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
