TX100 S3 Upgrade and Maintenance Manual 287
Front panel and external connectors
13.2.8 Installing the front USB cable

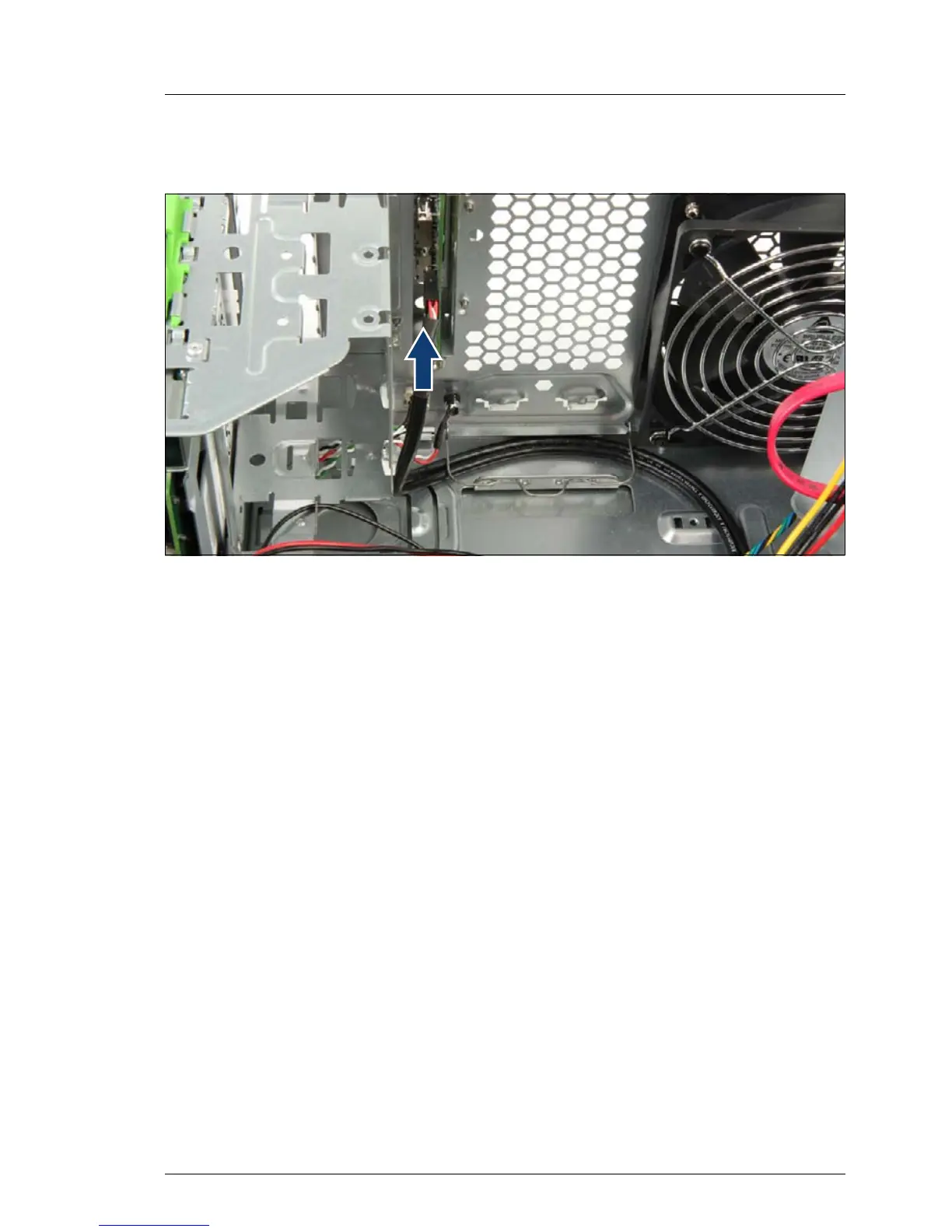

Figure 200: Connecting the USB front cable
Ê Connect the front USB cable to the front USB module.
13.2.9 Concluding steps
Perform the following procedures to complete the task:
Ê Insert the HDD cage as described in "Installing the HDD cage" on page 63.
Ê Close the front cover as described in section "Installing the front cover" on
page 53.
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
