TX100 S3 Upgrade and Maintenance Manual 103
Power supply

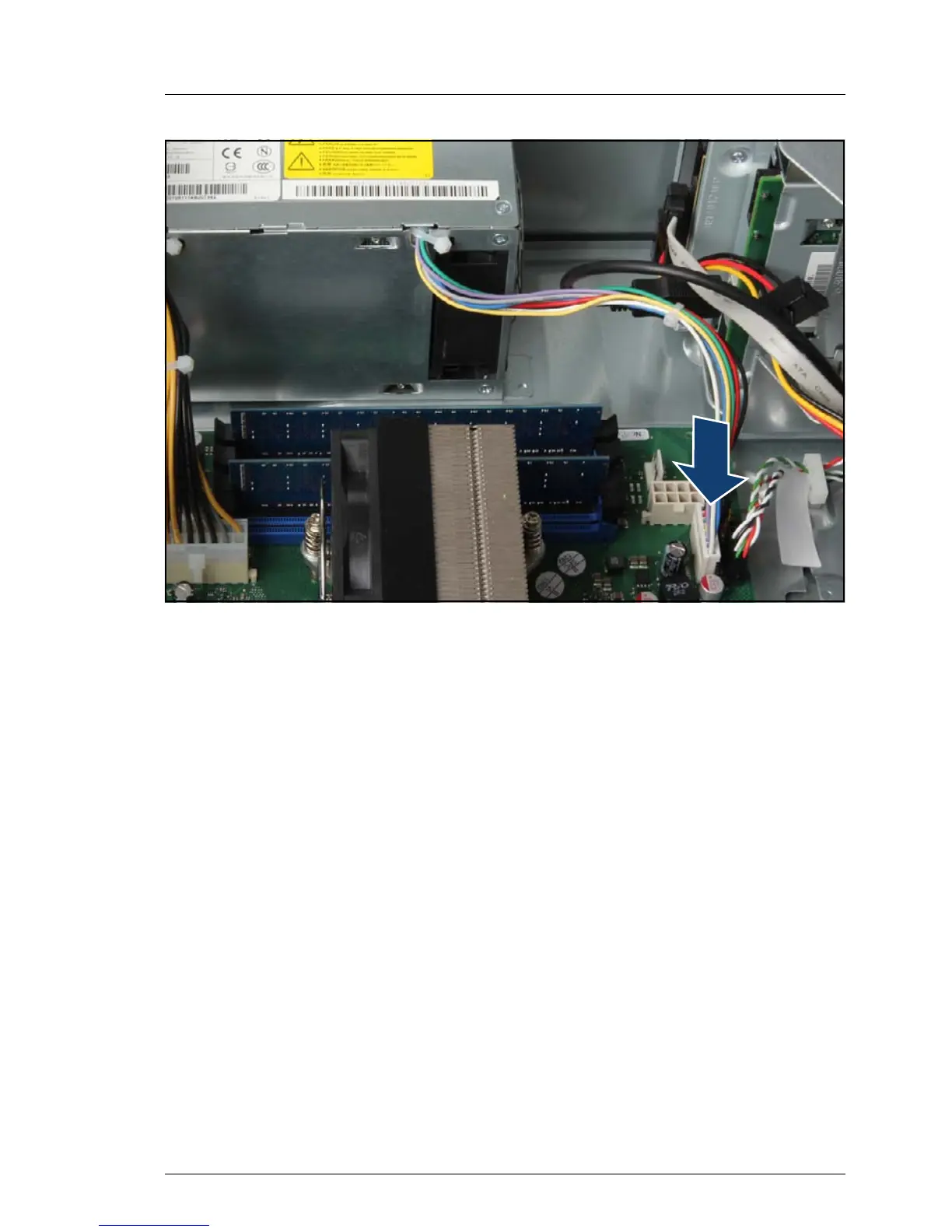

Figure 42: Connecting power cable
Ê Connect the PSU power management connector to system board connector
PC2009.
6.2.7 Concluding steps
Perform the following procedures to complete the task:
Ê Install the HDD cage as described in section "Installing the HDD cage" on
page 63.
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
