TX100 S3
Upgrade and Maintenance Manual
47
Basic hardware procedures
4.3.2
Removing ac
cessi
ble drives
4.3.2.1
Rem
oving the optical disk d
rive (ODD)

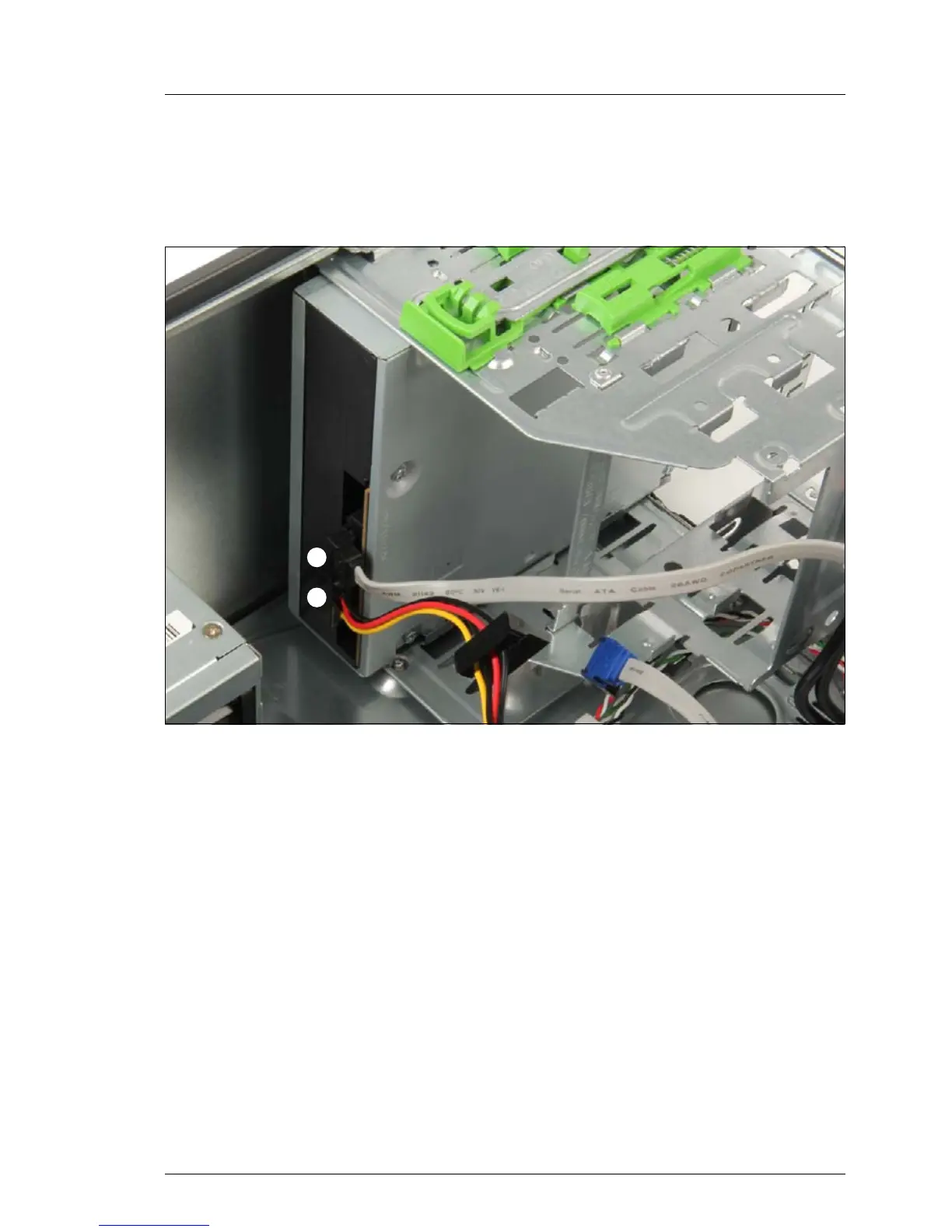

Figure 6: Disconnect
ing cables to the
optical disk
drive
Ê
Disconnect all cables from the optical disk drive
.
1
Power cable connector P8 (see
figure
227 on page
329
)
2
SA
T
A cable
/
0
46
48
