Fujitsu PRIMERGY TX100 S3 Maintenance Manual

54 Upgrade and Maintenance Manual TX100 S3
Basic hardware procedures
4.4.2 Installing the optical disk drive (ODD)

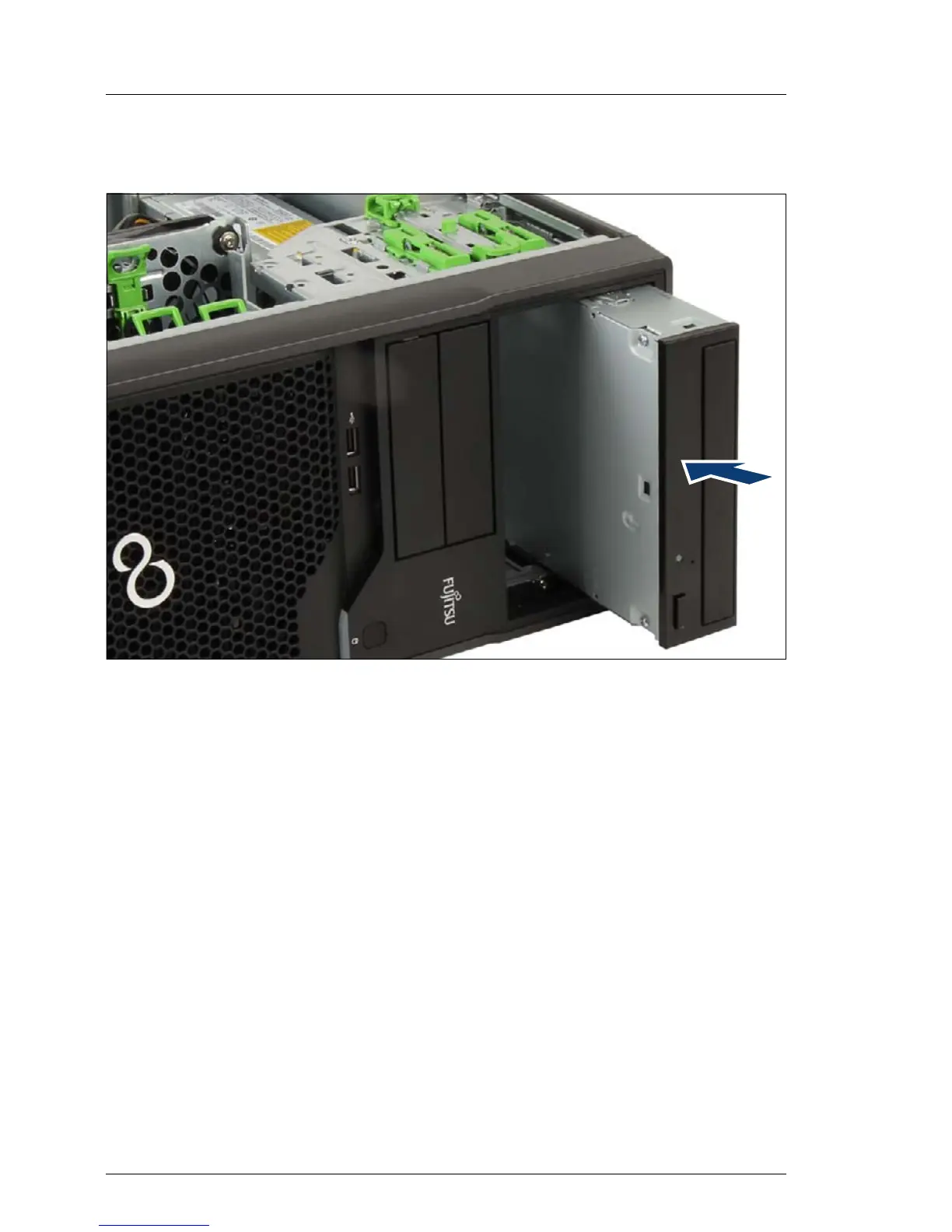

Figure 12: Installing the optical disk drive
Ê Insert the optical disk drive into its installation bay and carefully push in until
it locks in place.
I Make sure that the fixation plate is attached on the left side of the
accessible drive.
Ê If applicable, check the position of the EMI spring in the backup drive bay
after installing the ODD.
If the EMI spring is not in correct position, please remove the front cover (see
"Removing the front cover" on page 51), correct the position of the EMI
spring, and install the front cover again (see "Installing the front cover" on
page 53)."
