228 Upgrade and Maintenance Manual TX100 S3
Processor
11.2.7.1 Installing the processor heat sink type A

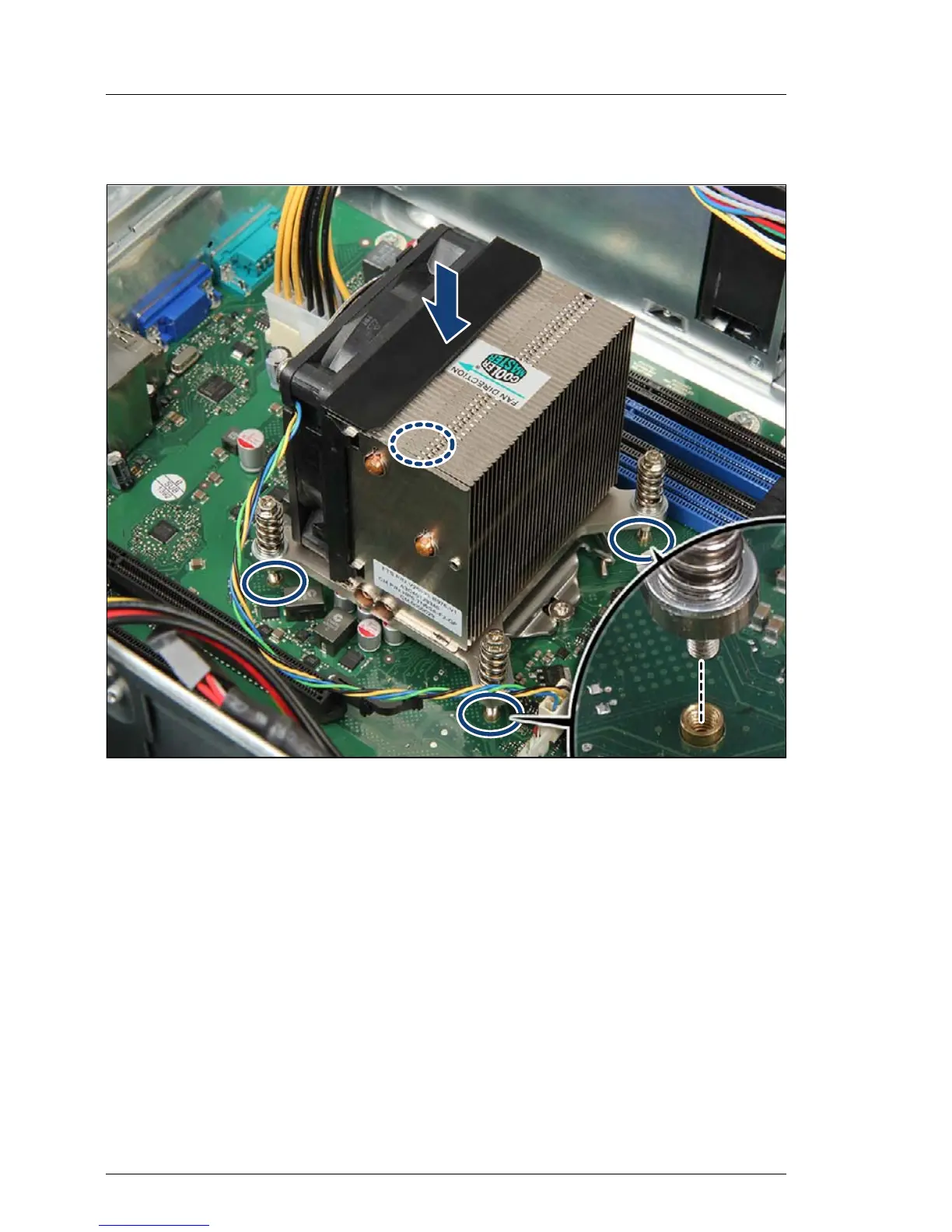

Figure 141: Installing the heat sink type A (A)
Ê Carefully seat the heat sink on the four threaded holes as shown.
V CAUTION!
– Ensure that the screws on the heat sink are properly seated on the
threaded holes (see circles).
– Ensure that the heat sink cooling fins match the direction of the
airflow!
