188 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units
9.3.6.4 Removing the FBU from the FBU holder

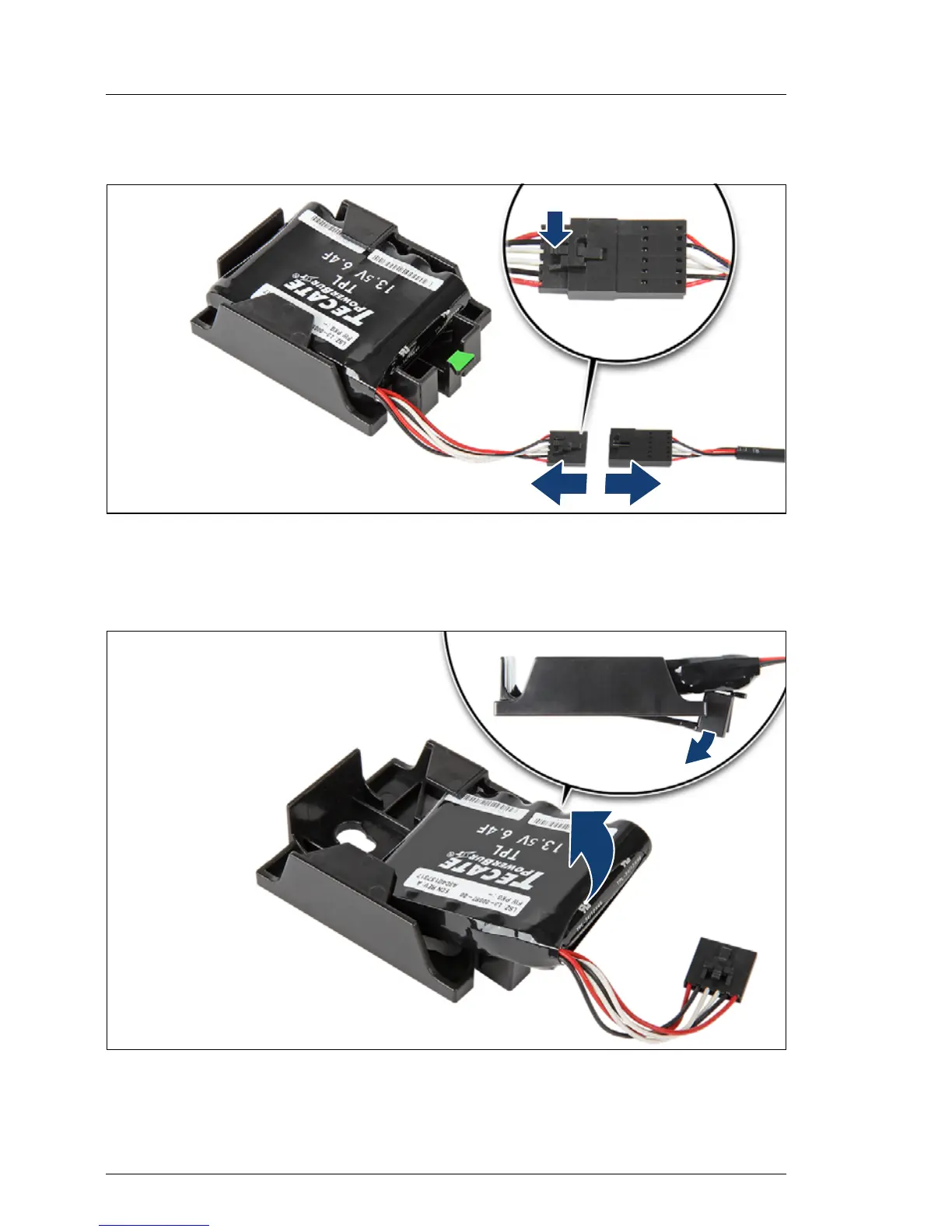

Figure 107: Disconnecting the FBU adapter cable from the FBU
Ê Press down on the locking latch on the FBU cable (see close-up) and
disconnect the FBU adapter cable.
Figure 108: Removing the FBU from the FBU holder
Ê At a slight angle, slide the FBU from under the retaining brackets of the FBU
holder and remove it.
