C-2
Data Flow
Models 2500 and 2502 User’s Manual
Introduction

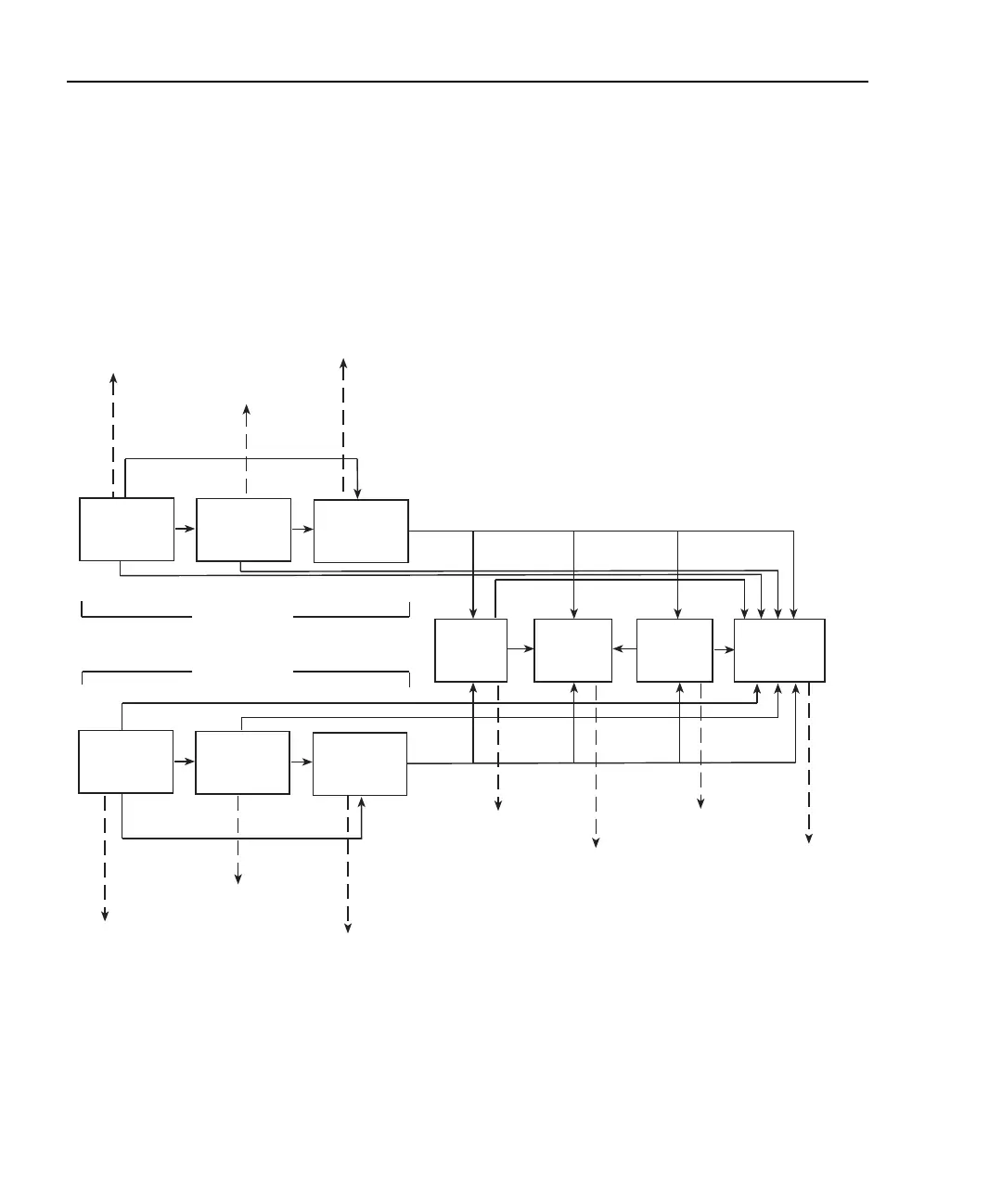

Data flow for remote operation is summarized by the block diagram sho
wn in
Figure C-1
.
Refer to this block diagram for the following discussion.
Figure C-1
Data flow block diagram
